EV Motors With out Uncommon Earth Everlasting Magnets

The dilemma is straightforward to explain. World efforts to fight local weather change hinge on pivoting sharply away from fossil fuels. To do this would require electrifying transportation, primarily by shifting from autos with combustion engines to ones with electrical drive trains. Such an enormous shift will inevitably imply far higher use of electrical traction motors, almost all of which depend on magnets that comprise uncommon earth parts, which trigger substantial environmental degradation when their ores are extracted after which processed into industrially helpful types. And for automakers exterior of China, there may be an extra deterrent: Roughly 90 % of processed uncommon earth parts now come from China, so for these corporations, growing dependence on uncommon earths means rising vulnerability in essential provide chains.

In opposition to this backdrop, huge efforts are underway to design and take a look at superior electric-vehicle (EV) motors that don’t use uncommon earth parts (or use comparatively little of them). Authorities businesses, corporations, and universities are engaged on this problem, oftentimes in collaborative efforts, in nearly all industrialized nations. In america, these initiatives embody long-standing efforts on the nation’s nationwide laboratories to develop everlasting magnets and motor designs that don’t use uncommon earth parts. Additionally, in a collaboration introduced final November,
Basic Motors and Stellantis are working with a startup firm, Niron Magnetics, to develop EV motors based mostly on Niron’s uncommon earth–free everlasting magnet. One other automaker, Tesla, shocked observers in March of final yr when a senior official declared that the corporate’s “subsequent drive unit,” which might be based mostly on a everlasting magnet, would however use no “uncommon earth parts in any respect.” In Europe, a consortium referred to as Passenger consists of 20 companions from business and academia engaged on uncommon earth–free everlasting magnets for EVs.

We’ve been working for almost a decade on magnetic and different elements of traction-motor design at
Oak Ridge Nationwide Laboratory (ORNL), in Tennessee, a hub of U.S. analysis on superior motors for EVs. Together with colleagues from the Nationwide Renewable Power Laboratory, Ames Laboratory, and the College of Wisconsin, Madison, now we have been finding out superior motor ideas as a part of the U.S. Division of Power’s U.S. Drive Applied sciences Consortium. The group additionally consists of Sandia Nationwide Laboratories, Purdue College, and the Illinois Institute of Expertise.

With all of this exercise, you’ll suppose that engineers would have by now developed a classy understanding of what’s attainable with uncommon earth–free electrical motors. And certainly they’ve. We and different researchers are evaluating promising permanent-magnet supplies that don’t use uncommon earth parts, and we’re evaluating attainable motor-design adjustments required to greatest use these supplies. We’re additionally evaluating superior motor designs that don’t use everlasting magnets in any respect. The underside line is that changing uncommon earth–based mostly magnets with non–uncommon earth ones comes at a value: degraded motor efficiency. However improvements in design, manufacturing, and supplies will have the ability to offset—perhaps even completely—this hole in efficiency. Already, there are a number of experiences of tantalizing outcomes with revolutionary new motors whose efficiency is alleged to be on a par with the perfect permanent-magnet synchronous motors.

Why uncommon earths take advantage of highly effective electrical motors

Uncommon earth parts (which individuals in our line of labor typically seek advice from as REEs) have distinctive properties that make them indispensable to many types of trendy expertise. A few of these parts, comparable to neodymium, samarium, dysprosium, and terbium, might be mixed with ferromagnetic parts comparable to iron and cobalt to provide crystals that aren’t solely extremely magnetic but additionally strongly resist demagnetization. The metric sometimes used to gauge these vital qualities of a magnet is known as the
most power product, measured in megagauss-oersteds (MGOe). The strongest and most commercially profitable everlasting magnets but invented, neodymium iron boron, have power merchandise within the vary of 30 to 55 MGOe.

For an electrical motor based mostly on everlasting magnets, the stronger its magnets, the extra environment friendly, compact, and light-weight the motor might be. So the highest-performing EV motors right this moment all use neodymium iron boron magnets. Nonetheless, intelligent motor design can cut back the efficiency hole between motors based mostly on uncommon earth everlasting magnets and ones based mostly on different kinds of magnets. To grasp how, you should know a bit of extra about electrical motors.

The most typical kind of traction motor in electrical autos is the interior-mount permanent-magnet synchronous motor. Everlasting magnets contained in the rotor work together with a rotating magnetic discipline created by electromagnet windings within the stator, which surrounds the rotor.Oak Ridge Nationwide Laboratory

There are two primary kinds of electrical motors: synchronous and induction. Most trendy electrical autos use a kind of synchronous motor that has a rotor outfitted with everlasting magnets. Induction motors use solely electromagnets and are due to this fact inherently uncommon earth–free. However they don’t seem to be used right this moment in most EV fashions as a result of their efficiency is mostly not on a par with permanent-magnet synchronous motors, though a number of R&D initiatives in america, Europe, and Asia try to enhance induction motors.

The time period “synchronous motors” refers to the truth that the rotor of the motor (the half that turns) rotates in synchrony with the altering magnetic fields produced by the stator (the half that is still stationary). Within the rotor, everlasting magnets are embedded in a circle across the construction. Within the stator, additionally in a round association, electromagnets are pulsed with electrical energy one after one other to arrange a rotating magnetic discipline. This course of causes the rotor magnets and stator magnets to draw and repel each other sequentially, producing rotation and torque.

Synchronous motors, too, fall into a number of classes. Two vital varieties are
surface-mount permanent-magnet synchronous motors and synchronous reluctance motors. Within the former group, everlasting magnets are mounted on the exterior floor of the rotor, and torque is produced as a result of totally different elements of the stator and rotor both entice or repel. In a synchronous reluctance motor, alternatively, the rotor doesn’t must have everlasting magnets in any respect. What makes the motor spin is a phenomenon referred to as magnetic reluctance, which refers to how a lot a fabric opposes magnetic flux passing via it. Ferromagnetic supplies have low values of reluctance and can are inclined to align themselves with robust magnetic fields. This phenomenon is exploited to trigger a ferromagnetic rotor, in a reluctance motor, to spin. (Some reluctance motors additionally make use of everlasting magnets to help that rotation.)

If a motor relies upon primarily on the interplay between the stator and rotor magnetic fields, it’s referred to as a permanent-magnet
dominated motor. If alternatively it is dependent upon the torque produced by variations in reluctance, it’s a permanent-magnet assisted motor. The mixed use of each kinds of torque—that produced by the attraction and repulsion of everlasting magnets and that produced by the tendency of magnetic strains of drive to circulate alongside a path of least reluctance—is the important thing technique being utilized by engineers striving to attain excessive efficiency in a motor that’s much less reliant on REE magnets.

Changing REE-based magnets with non-REE ones comes at a value: degraded motor efficiency. However improvements in motor design, manufacturing, and supplies will have the ability to offset—perhaps even completely—this hole in efficiency.

The most typical motor kind in the meanwhile combining the 2 sorts of torque is the
interior-mount permanent-magnet motor, during which the everlasting magnets embedded inside the rotor add to the reluctance torque. Many industrial EV producers, together with GM, Tesla, and Toyota, now use this kind of rotor design.

The design of the motors for the Toyota Prius underscores the effectiveness of this strategy. In these motors, the magnet mass decreased considerably over a interval of 13 years, from 1.2 kilograms within the 2004 Prius to about 0.5 kg within the 2017 Prius. A lot the identical occurred with the Chevrolet Bolt motor, which lowered the general utilization of magnet materials by 30 % in contrast with the motor in its predecessor, the Chevrolet Spark.

Wringing essentially the most out of everlasting magnets with out uncommon earths

However what about eliminating REEs completely? Right here, there are two prospects: Use REE-free everlasting magnets in a motor designed to profit from them, or use a motor that dispenses with everlasting magnets completely, in favor of electromagnets.

To grasp the suitability of a selected REE-free everlasting magnet to be used in a strong traction motor, it’s a must to take into account a few further traits of a everlasting magnet: remanence and coercivity. To start with, recall the metric used to check the energy of various permanent-magnet supplies: most power product. These three parameters—most power product, remanence, and coercivity—largely point out how effectively a permanent-magnet materials will carry out in an electrical motor.

Remanence signifies the quantity of magnetic depth, as measured by the density of the strains of drive, left in a everlasting magnet after the magnetic discipline that magnetized this magnet is withdrawn. Remanence is vital as a result of with out it you wouldn’t have a everlasting magnet. And the upper the remanence of the fabric, the stronger the forces of magnetic attraction and repulsion that create torque.

The coercivity of a everlasting magnet is a measure of its means to withstand demagnetization. The upper the worth of coercivity, the tougher it’s to demagnetize the magnet with an exterior magnetic discipline. For an EV traction motor, an optimum everlasting magnet, comparable to neodymium iron boron, has excessive most power product, excessive remanence, and excessive coercivity. No REE-free everlasting magnet has all of those traits. So in the event you change neodymium iron boron magnets with, say, ferrite magnets in a motor, you may count on a lower in torque output and in addition should settle for a higher threat that the magnets will demagnetize throughout operation.

An experimental motor constructed by the authors at Oak Ridge Nationwide Laboratory didn’t use any heavy uncommon earth parts. Neodymium iron boron everlasting magnets are mounted on the exterior floor of the rotor. These magnets are represented by the teal-colored ring of blocks surrounding the copper-colored stator windings. To save lots of house, the motor’s inverter and management electronics have been put in contained in the stator.Oak Ridge Nationwide Laboratory

Motor engineers can decrease the distinction by designing a motor that exploits each everlasting magnets and reluctance. However even with a extremely optimized design, a motor based mostly on ferrite magnets will likely be significantly heavier—maybe a 3rd or extra—whether it is to attain the identical efficiency as a motor with uncommon earth magnets.

One method used to wring most efficiency out of ferrite magnets is to pay attention the flux from these magnets to the utmost extent attainable. It’s analogous to passing transferring water via a funnel: The water strikes quicker within the slim opening. Researchers have constructed such machines, referred to as spoke-ferrite magnet motors, however have discovered them to be about
30 % heavier than comparable motors based mostly on REE magnets. And there’s extra dangerous information: Spoke-type motors might be advanced to fabricate and pose mechanical challenges.

Some designers have proposed utilizing one other type of non-REE magnet, one comprised of an aluminum nickel cobalt alloy referred to as alnico, generally used within the magnets that maintain fridge doorways shut. Though alnico magnets have excessive remanence, their coercivity is kind of low, making them vulnerable to demagnetization.

To deal with this difficulty, a number of researchers have studied and designed
variable-flux reminiscence motors, which use a magnetizing element of present to assist in torque manufacturing, in impact preserving the magnets from demagnetizing throughout operation. Moreover, researchers from the Ames Laboratory have proven that alnico magnets can have elevated coercivity whereas sustaining their excessive remanence.

Three parameters—most power product, remanence, and coercivity—largely point out how a everlasting magnet materials will carry out in an electrical motor.

Currently, there’s been a number of consideration centered on a brand new kind of permanent-magnet materials, iron nitride (FeN). This magnet, produced by Niron Magnetics, has excessive remanence, equal to that of REE-magnets, however like alnico has low coercivity—
a few fifth of a comparable neodymium iron boron magnet. Due to these essentially totally different properties, FeN magnets require the event of recent rotor designs, which can most likely resemble these of previous alnico motors. Niron is now creating such designs with automotive companions, together with Basic Motors.

One more REE-free permanent-magnet materials that comes up in discussions of future motors is manganese bismuth (MnBi), which has been the
topic of collaborative analysis on the College of Pittsburgh, Iowa State College, and Powdermet Inc. Collectively these engineers designed a surface-mount permanent-magnet synchronous motor utilizing MnBi magnets. The remanence and coercivity of those magnets is greater than ferrite magnets however decrease than neodymium iron boron (NdFeB). The researchers discovered {that a} MnBi-magnet motor can produce the identical torque output as a NdFeB-magnet motor however with substantial compromises: a whopping 60 % improve in quantity and a 65 % improve in weight. On the intense aspect, the researchers steered that changing NdFeB magnets with MnBi magnets may cut back the general price of the motor by 32 %.

One other technique for lowering uncommon earth content material in motors includes eliminating simply the heavy uncommon earth parts utilized in a few of these magnets. NdFeB magnets, for instance, sometimes comprise small quantities of the heavy uncommon earth factor dysprosium, used to extend their coercivity at excessive temperatures. (Heavy uncommon earth metals are usually in shorter provide than the sunshine uncommon earths, comparable to neodymium.) The rub with not utilizing them is that high-temperature coercivity then suffers.

So the foremost problem in designing this type of motor is preserving the rotor cool. Final yr, at Oak Ridge Nationwide Laboratory,
we developed a 100-kilowatt traction motor that makes use of no heavy uncommon earth parts in its magnets. One other good function is that its energy electronics are built-in inside it. These energy electronics included the inverter, which takes direct-current energy from the battery and feeds the motor with alternating present on the correct frequency to drive the machine.

We confronted a number of elementary challenges in preserving the magnets from getting too scorching. You see, everlasting magnets are good conductors. And when {an electrical} conductor strikes in a magnetic discipline, which is what rotor magnets do whereas the motor is working, currents are induced in it. These currents, which don’t contribute to the torque, warmth up the magnets and may demagnetize them. One option to cut back this heating is to interrupt up the trail of the circulating currents by making the magnets from skinny segments which might be electrically insulated from each other. In our motor, every of those segments was only one millimeter thick.

We selected to make use of a grade of NdFeB magnets referred to as N50 that may function at temperatures as much as 80 °C. Additionally, we would have liked to make use of a carbon-fiber-and-epoxy system to bolster the outer diameter of the rotor to let it spin at speeds as excessive as 20,000 rpm. After analyzing our motor prototype, we found it could be essential to drive air via the motor to scale back its temperature when working at most pace. Whereas that’s not perfect, it’s an inexpensive compromise to keep away from having to make use of heavy REEs within the design.

New approaches for superior motors

Maybe essentially the most enticing near-term choice to make highly effective motors that lack REEs completely is to construct synchronous motors which have rotors outfitted with electromagnets (that means coils of wire), both with or with out ferrite magnets included with them. However doing that requires that you just one way or the other cross electrical present to these spinning coils.

The normal answer is to make use of carbon brushes to make electrical contact with spinning metallic rings, referred to as slip rings. This method lets you apply direct present to the rotor to energise its electromagnets. These brushes produce mud, although, and ultimately put on out, so these motors aren’t appropriate to be used in EVs.

To deal with this difficulty, engineers have devised what are referred to as
rotary transformers or exciters. They make use of an inductive or capacitive system to switch energy wirelessly to the spinning rotor. These motors have an important benefit over standard, permanent-magnet synchronous motors, which is that their rotor’s magnetic discipline might be exactly adjusted, just by controlling the present to the rotor’s electromagnets. That in flip permits a way referred to as discipline weakening, which permits excessive effectivity to be maintained via a variety of working speeds.

In the best way they produce torque, synchronous electrical motor varieties might be regarded as current on a continuum between two totally different extremes. On the higher left on this chart is the floor permanent-magnet motor, which produces torque solely from the interplay between everlasting magnets within the rotor and electromagnets within the stator. On the decrease proper is the synchronous reluctance motor, which creates torque by exploiting a completely totally different phenomenon—magnetic reluctance, which refers to how a lot a fabric opposes magnetic flux passing via it. Most motor designs maximize torque by combining these two sorts of torque.Oak Ridge Nationwide Laboratory

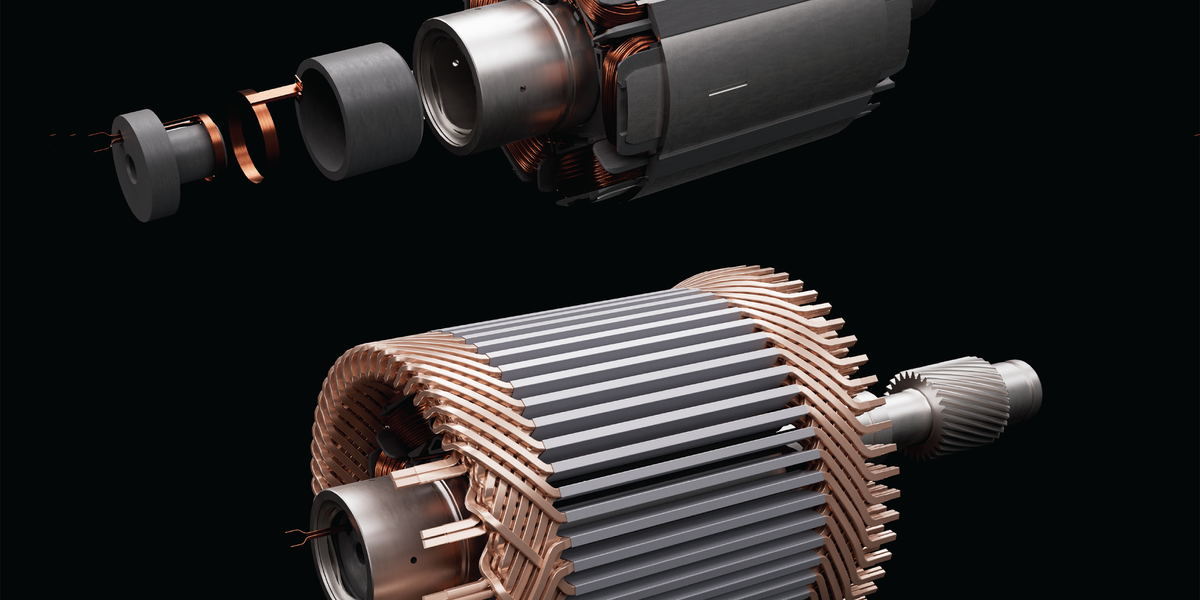

A notable latest instance is a motor constructed by the automotive provider ZF Group. Final yr the corporate introduced it had produced a synchronous motor during which electromagnets within the rotor are powered by an inductive system that matches contained in the machine’s rotor shaft. The 220-kW motor has power-density and effectivity traits on a par with these of the NdFeB permanent-magnet motors now utilized in EVs,
in response to an organization official.

New supplies may assist bridge the hole between REE-magnet and non-REE-magnet motors. For instance, high-silicon metal, famend for its superior magnetic properties, emerges as a promising candidate for rotor development, providing the potential to enhance the magnetic effectivity of REE-free motors. Concurrently, utilizing
high-conductivity copper alloys or ultraconducting copper strands can tremendously cut back electrical losses and enhance total efficiency. Doubling the conductivity of copper, for instance, may cut back the amount of sure motors by 30 %. The strategic integration of such supplies may dramatically slim the efficiency hole between REE-containing and REE-free motors.

One other good instance of a sophisticated materials that might make an enormous distinction is a
dual-phase magnetic materials developed by GE Aerospace, which might be magnetized both very strongly or by no means in specified areas. By selectively making sure sections of the rotor nonmagnetic, the GE Aerospace group demonstrated that it’s attainable to get rid of nearly all magnetic leakage, which in flip allowed them to forgo utilizing uncommon earth everlasting magnets within the motor.

How engineers will navigate the transition to REE-free motors

The transition towards uncommon earth–free motors for EVs is a serious and pivotal engineering endeavor. Will probably be tough, however analysis is starting to yield intriguing and inspiring outcomes. There’ll quickly be a number of designs accessible—with, alas, a fancy array of trade-offs. Motor weight, energy density, price, manufacturability, and total efficiency dynamics will all be vital concerns. And success within the market will little question rely on an equally advanced set of financial elements, so it’s very onerous to foretell which designs will dominate.

What’s changing into clear, although, is that it’s completely possible that REE-free motors will in the future grow to be mainstream. That final result would require continued and concerted effort. However we see no motive why engineers can’t navigate the complexities of this transition, making certain that the subsequent technology of EVs is extra environmentally benign. Already, at ORNL and elsewhere, AI-enabled motor-design instruments are accelerating the event of those REE-free motors.

In the present day, the large-scale use of REE magnets is marked by arguments pitting technological advantages in opposition to environmental and moral concerns. Quickly, these arguments might be a lot much less related.

We’re not there but. As with every main technological transition, the journey to uncommon earth–free motors gained’t be quick or straight. However it will likely be a journey effectively price taking.
