A grid-scale battery within the Scottish Highlands bought an opportunity to show its mettle in March when, 11 days after it began up, a large wood-burning generator in northern England shut down unexpectedly. All of the sudden 1,877 megawatts of provide was lacking, inflicting the 50-hertz frequency of the grid’s alternating present to crash beneath its 49.8-Hz working restrict in simply 8 seconds.
However the brand new 200-MW battery station leapt into motion inside milliseconds, releasing additional energy to assist arrest the frequency collapse and preserve the grid working.
Typical fossil-fuel mills have traditionally helped thwart these sorts of issues. With the inertia of their spinning rotors, their kinetic vitality offers a buffer in opposition to speedy swings in frequency and voltage. However the response within the Highlands was certainly one of the world’s first examples of a grid-scale battery commissioned to do this type of grid-stabilizing job.

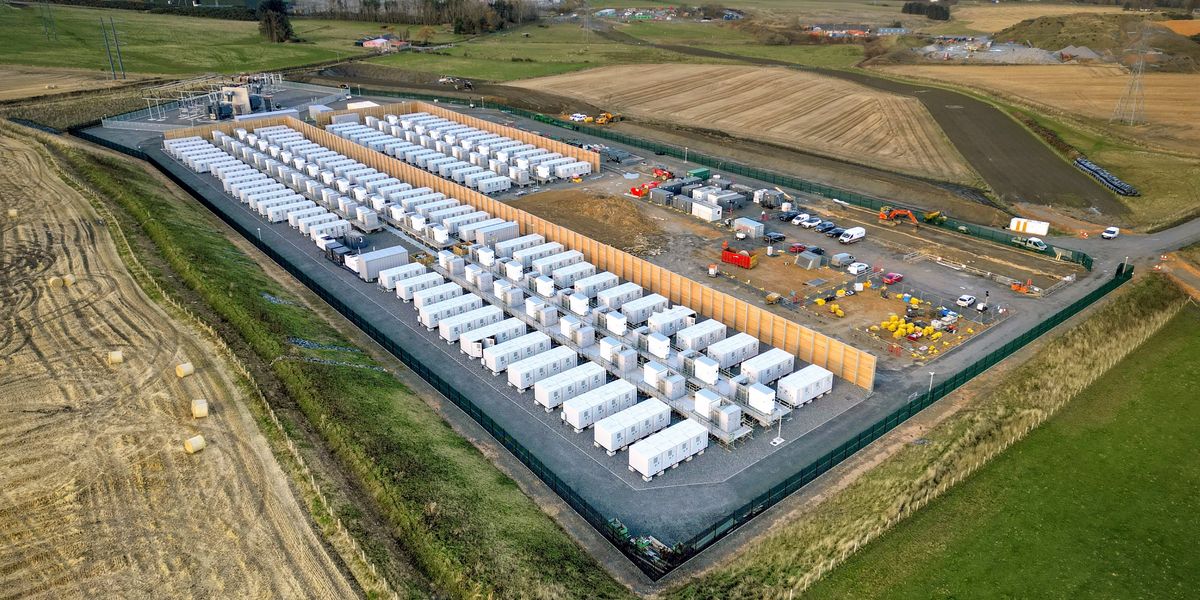

With out shifting elements, the lithium battery storage website—the biggest in Europe and positioned Blackhillock, Scotland—simulates inertia utilizing energy electronics. And in an revolutionary twist, the battery website can additionally present short-circuit present in response to a fault, identical to standard energy mills.
4 extra of those battery websites are underneath development in Scotland.
How Do Grid-Forming Inverters Work?
The batteries can ship these stabilizing providers due to their superior grid-forming inverters that convert direct present from lithium batteries into alternating present for the grid, and vice versa when the batteries are charging. Moderately than ‘following’ the grid’s frequency and voltage the way in which almost all different grid-scale inverters do, grid-forming inverters march to their very own drum, and might generally act quicker than standard mills.
“These grid-forming inverters that we’re putting in in Scotland—no one is doing that,” says Julian Leslie, chief engineer and strategic vitality planning director for the Nationwide Power System Operator (NESO), based mostly in Warwick, England. Andy Hoke, an professional in grid-forming expertise and principal engineer on the U.S. Nationwide Renewable Power Lab, says Scotland’s additions positively push the envelope. “They’re tremendous thrilling initiatives,” says Hoke.
Can the UK Function With out Gasoline Crops?
NESO is counting on grid-forming batteries to assist obtain an bold aim that it set for 2025: to point out that the United Kingdom can reside with out its dextrous, stability-boosting gas-fired crops. The U.Okay. shut down its final coal-fired energy plant final yr, and by the tip of this yr NESO plans to show that it may well additionally function with out gasoline crops.
“By the tip of the yr we’ll have a few hours with zero carbon operation, which goes to be superb,” says Leslie. It will be the world’s largest demonstration of fossil-free grid operation.
That is no ‘eco ego’ stunt. Elevated stability from energy electronics means extra photo voltaic and wind mills can connect with the grid, and minimizes how typically NESO should curtail their technology. London-based Zenobē, the grid battery operator behind three of the brand new Scottish battery websites, estimates that Blackhillock alone will save shoppers £309 million (US $418 million) over 15 years.
Scotland is floor zero for the U.Okay.’s grid decarbonization problem. It has already closed not solely its coal crops, but in addition its gasoline crops. Its one remaining nuclear plant, Torness, will shut down by 2030. With Torness’s closing, the one synchronous mills left in Scotland will likely be its few remaining small hydropower crops—machines which have for thus lengthy maintained the soundness of the grid with the mechanical pace of their rotors. The wind- and solar-power installations the nation is betting on for its vitality future have grid-following inverters that contribute little to grid stability.
So options are wanted. Operators worldwide have been reinforcing their grids by putting in synchronous condensers—standalone synchronous mills whose rotors are stored spinning utilizing grid energy. Saved kinetic vitality is then out there when the grid stumbles, very like a standard energy plant. The Baltic states ordered a raft of those devoted stabilizers forward of their latest shift from syncing with Russia’s grid to Europe’s.
NESO, nevertheless, is taking a special tack in its preparation for zero-carbon operation. As an alternative of merely specifying synchronous condensers, NESO recognized the place it wanted extra stability and invited builders to pitch tech options. Grid-forming batteries scored large in NESO’s 2022 tender. The £323-million ($427-million) bundle of successful bids included Scotland’s superior grid-scale batteries together with 5 synchronous condensers.
Brief-Circuit Present Innovation
What’s most revolutionary in regards to the grid-forming batteries is that NESO mandated that they supply short-circuit present, identical to synchronous mills do. When falling timber and different mishaps join a transmission line to the bottom, short-circuiting the grid, energy crops’ synchronous mills launch a surge of present that helps prop up voltage. The blast of present can also be an essential sign that triggers grid-protecting relays to open and isolate the faulted transmission phase in a fraction of a second.
Mimicking that conduct is tough for energy electronics. A grid-forming inverter sustains its personal voltage and frequency by delivering no matter present is required. When voltage drops, the controller instantly permits extra present by way of the inverter’s transistors. Up to now so good. However inverters can shortly hit a wall. Excessive currents are like kryptonite for energy electronics, producing warmth that may shortly fry their transistors. Consequently, inverters often function at solely 10 to twenty % above their present score, whereas currents from a synchronous generator can enhance 700 % throughout a fault.
The best technique to enhance present capability is so as to add extra transistors, however that’s dear for the insulated-gate bipolar transistors utilized in transmission-level converters. German inverter producer SMA Photo voltaic Know-how, which provided Blackhillock’s inverter, discovered a less expensive technique to meet the necessity, making the most of the brevity of short-circuit present.
They programmed Blackhillock’s inverter to hit 250 % above nominal present to ship the 140 millisecond pulse that NESO requires, says Aaron Gerdemann, a enterprise improvement supervisor for SMA. After that, the gadget will again down, permitting the circuits to chill.
Can Energy Electronics Stabilize the Grid?
Zenobē’s world director of community infrastructure, Semih Oztreves, predicts that grid-forming batteries will finally nook the soundness market due to their inherent multi-functionality. Whereas synchronous condensers largely sit idle, ready for a uncommon grid fault, Zenobē’s superior batteries earn day by day income by doing what most different storage websites do. For instance, they arbitrage vitality, absorbing energy when it’s low-cost and promoting when provides get tight.
However the short-circuit chops of grid-forming batteries haven’t but confronted a real-life check. Till then, doubts linger about whether or not transmission relays will reply appropriately to the inverters’ digitally-defined surge of present. In a report final yr for Australian grid operator Transgrid, one professional suggested in opposition to over-reliance on grid-forming inverters for short-circuit present, saying that it will carry “excessive to very excessive threat.” The utility later introduced 10 synchronous condensers and 5 grid-forming batteries to bolster its grid.
So for now, with the stakes excessive, protecting just a few of the pricier synchronous condensers within the combine most likely is sensible, says Hoke. “It won’t be the cost-optimal answer, however it might be the sensible answer,” he says.
