A couple of 12 months in the past, Zipline launched Platform 2, an strategy to precision city drone supply that mixes a big hovering drone with a smaller package-delivery “Droid.” Lowered on a tether from the stomach of its mum or dad Zip drone, the Droid comprises thrusters and sensors (plus a 2.5- to three.5-kilogram payload) to reliably navigate itself to a supply space of only one meter in diameter. The Zip, in the meantime, safely stays a whole lot of meters up. After depositing its payload, the Droid rises again as much as the drone on its tether, and off they go.
At first look, the sensor and thruster-packed Droid appears sophisticated sufficient to be bordering on impractical, particularly when you think about the relative simplicity of different drone supply options, which generally simply drop the bundle itself on a tether from a hovering drone. I’ve been writing about robots lengthy sufficient that I’m suspicious of robotic options that look like overengineered, since that’s at all times an enormous temptation with robotics. Like, is that this actually the finest means of fixing an issue, or is it simply the coolest means?
We all know the oldsters at Zipline fairly properly, although, they usually’ve definitely made artistic engineering work for them, as we noticed after we visited one in all their “nests” in rural Rwanda. In order Zipline nears the official launch of Platform 2, we spoke with Zipline cofounder and CTO Keenan Wyrobek, Platform 2 lead Zoltan Laszlo, and industrial designer Gregoire Vandenbussche to grasp precisely why they suppose that is one of the simplest ways of fixing precision city drone supply.
First, a fast refresher. Right here’s what the supply sequence with the vertical takeoff and touchdown (VTOL) Zip and the Droid seems like:
The system has a service radius of about 16 kilometers (10 miles), and it may well make deliveries to outside areas of “any significant dimension.” Visible sensors on the Droid discover the supply web site and examine for obstacles on the best way down, whereas the thrusters compensate for wind and motion of the mum or dad drone. Because the large VTOL Zip stays properly out of the best way, deliveries are quick, protected, and quiet. Nevertheless it takes two robots to drag off the supply moderately than only one.
On the opposite finish is the infrastructure required to load and cost these drones. Zipline’s Platform 1 drones require a devoted base with comparatively giant launch and restoration techniques. With Platform 2, the drone drops the Droid into a big chute hooked up to the facet of a constructing in order that the Droid might be reloaded, after which it pulls the Droid out once more and flies off to make the supply:
“We expect it’s the most effective supply expertise. Not the most effective drone supply expertise, the most effective supply expertise,” Zipline’s Wyrobek tells us. That could be true, however the expertise additionally must be sensible and sustainable for Zipline to achieve success, so we requested the Zipline group to clarify the corporate’s strategy to precision city supply.
Zipline on:
IEEE Spectrum: What issues is Platform 2 fixing, and why is it vital to resolve these issues on this particular means?
Keenan Wyrobek: There are actually billions of last-mile deliveries occurring yearly in [the United States] alone, and our prospects have been asking for years for one thing that may ship to their houses. With our long-range platform, Platform 1, we are able to float a bundle down into your yard on a parachute, however that takes some house. And so one half of the massive design problem was find out how to get our deliveries exact sufficient, whereas the opposite half was to develop a system that may bolt on to present amenities, which Platform 1 doesn’t do.
Zoltan Laszlo: Platform 1 can ship inside an space of about two parking areas. As we began to really take a look at the info in city areas utilizing publicly obtainable lidar surveys, we discovered that two parking areas serves a bit greater than half the market. We wish to be a common supply service.
However with a supply space of 1 meter in diameter, which is what we’re truly hitting in our supply demonstrations for Platform 2, that will get us into the excessive 90s for the share of people who we are able to ship to.
Wyrobek: After we say “city,” what we’re speaking about is three-story sprawl, which is frequent in lots of giant cities all over the world. And we needed to ensure that our deliveries could possibly be exact sufficient for locations like that.
There are some present options for precision aerial supply which have been working at scale with some success, sometimes by winching packages to the bottom from a VTOL drone. Why develop your individual method moderately than simply going with one thing that has already been proven to work?
Laszlo: Winching down is the pure extension of with the ability to hover in place, and after we first began, we had been like, “Okay, we’re simply going to winch down. This shall be nice, tremendous simple.”
So we went to our check web site in Half Moon Bay [on the Northern California coast] and constructed a fast prototype of a winch system. However as quickly as we lowered a field down on the winch, the wind began blowing it in all places. And this was from the peak of our raise, which is lower than 10 meters up. We weren’t even in a position to keep inside two parking areas, which advised us that one thing was damaged with our strategy.
The plane can sense the wind, so we thought we’d have the ability to discover the best angle for the supply and issues like that. However the wind the place the plane is could also be totally different from the wind nearer the bottom. We realized that until we’re delivering to an open subject, a bundle that doesn’t have lively wind compensation goes to be very onerous to manage. We’re concentrating on high-Ninetieth percentile when it comes to availability because of climate—even when it’s a fairly blustery day, we nonetheless need to have the ability to ship.
Wyrobek: This was a wild perception after we actually understood that until it’s an ideal day, utilizing a winch truly takes nearly as a lot house as we use for Platform 1 floating a bundle down on a parachute.
Engineering check footage of Zipline’s Platform 2 docking system at their check web site in Half Moon Bay in California.
How did you arrive at this specific supply resolution for Platform 2?
Laszlo: I don’t keep in mind whose thought it was, however we had been taking part in with a bunch of various choices. Placing thrusters on the tether wasn’t even the craziest thought. We had our Platform 1 plane, which was dependable, so we began with taking a look at methods to simply make that plane ship extra exactly. There was solely a lot extra we might do with passive parachutes, however what does an lively, steerable parachute appear to be? There are remote-controlled paragliding toys on the market that we examined, with blended outcomes—the problem is to reduce the smarts in your parachute, as a result of there’s an opportunity you received’t get it again. So then we began some loopy brainstorming about find out how to reliably retrieve the parachute.
Wyrobek: One thought was that the parachute would include a self-return envelope that you might stick within the mail. One other thought was that the parachute could be steered by a bit of drone, and when the bundle received dropped off, the drone would reel the parachute in after which fly again up into the Zip.
Laszlo: However after we realized that the bundle has to have the ability to steer itself, that meant the Zip doesn’t should be lively. The Zip doesn’t must drive the bundle, it doesn’t even must see the bundle, it simply must be a degree up within the sky that’s holding the bundle. That permit us transfer from having the Zip 50 toes up, to having it 300 toes up, which is vital as a result of it’s a giant, heavy drone that we don’t need in our buyer’s house. And the ultimate step was including sufficient smarts to the factor coming down into your house to determine the place precisely to ship to, and naturally to deal with the wind.

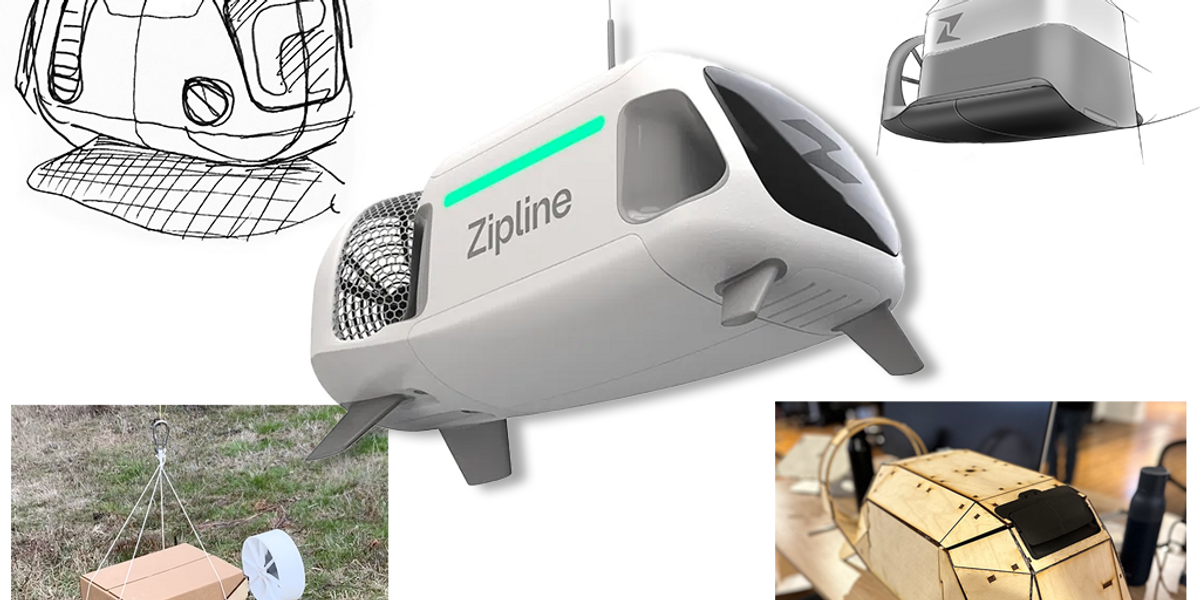

When you knew what you wanted to do, how did you get to the precise design of the droid?
Gregoire Vandenbussche: Zipline confirmed me fairly early on that they had been able to attempt loopy concepts, and from my expertise, that’s extraordinarily uncommon. When the concept of getting this controllable tether with a bundle hooked up to it got here up, one in all my first ideas was that from a person standpoint, nothing like this exists. And the problem of designing one thing that doesn’t exist is that folks will attempt to determine it in accordance with what they know. So we needed to discover a option to drive that pondering in direction of one thing constructive.
Early Droid idea sketches by designer Gregoire Vandenbussche featured legs that will fold up after supply.Zipline
First we thought of placing phrases onto it, like “hiya” or one thing, however the actuality is that we’re a world firm and we’d like to have the ability to work in every single place. However there’s one factor that’s frequent to everybody, and that’s feelings—persons are in a position to acknowledge sure issues as being approachable and cute, so entering into that course felt like the best factor to do. Nonetheless, with the ability to design a robotic that offers you that form of emotion but additionally flies was fairly a problem. We took inspiration from different issues that transfer in 3D, like sea mammals—issues that folks will acknowledge even with out eager about it.
Vandenbussche’s sketches present how the design of the Droid was partially impressed by dolphins.Zipline
Now that you simply say it, I can positively see the ocean mammal inspiration within the drone.
Vandenbussche: There are two elements of sea mammals that work rather well for our objective. Considered one of them is simplicity of form; sea mammals don’t have all that many particulars. Additionally, they are typically optimized for efficiency. Finally, we’d like that, as a result of we’d like to have the ability to fly. And we’d like to have the ability to convey to people who the drone is beneath management. So having one thing you possibly can inform is shifting ahead or turning or shifting away was very useful.
Wyrobek: One different perception that we had is that Platform 2 must be small to suit into tight supply areas, and it must really feel small when it comes into your private house, however it additionally must be sufficiently big inside to be a helpful supply platform. We tried to leverage the chubby however cute look that child seals have happening.
The design journey was fairly enjoyable. Gregoire would spend two or three days developing with 100 totally different idea sketches. We’d do a bunch of brainstorming, after which Gregoire would give you a complete bunch of latest instructions, and we’d hold exploring. To be clear, nobody would describe our useful prototypes from again then as “cute.” However by means of all this iteration ultimately we ended up in an superior place.
And the way do you discover that place? When have you learnt that your robotic is simply cute sufficient?
One iteration of the Droid, Vandenbussche decided, regarded too technical and intimidating.Zipline
Vandenbussche: It’s discovering the steadiness round what’s practical and useful. I like to think about industrial design as taking the entire constraints and form of taking part in Tetris with them till you get a end result that ideally satisfies everyone. I keep in mind at one level taking a look at the place we had been, and feeling like we had been focusing an excessive amount of on efficiency and lacking that emotional degree. So, we went again a bit of bit to say, the place can we convey this again from wanting like a extremely technical machine to one thing that may give you a sense of approachability?
Laszlo: We spent a good bit of time on the controls and behaviors of the droid to ensure that it strikes in a really approachable and predictable means, in order that you already know the place it’s going forward of time and it doesn’t behave in surprising methods. That’s fairly vital for the way individuals understand it.
We did numerous work on how the droid would descend and strategy the supply web site. One idea had the droid begin to decrease down properly earlier than the Zip was hovering immediately overhead. We had simulations and renderings, and it regarded nice. We might do the entire supply in precisely over 20 seconds. However even when the bundle is way away from you, it nonetheless seems scary as a result of [the Zip is] shifting sooner than you’d count on, and you’ll’t inform precisely the place it’s going to ship. So we deleted all that code, and now it simply comes straight down, and folks don’t again away from the Droid anymore. They’re similar to, “Oh, okay, cool.”
How did you design the thrusters to allow these pinpoint deliveries?
Early assessments of the Droid centered round a two-fan model.Zipline
Laszlo: With the thrusters, we knew we needed to maximise the scale of at the very least one of many followers, as a result of we had been nearly at all times going to should cope with wind. We’re attempting to be as quiet as we are able to, so the important thing there’s to maximise the world of the propeller. Our main early design was only a field with two followers on it:
Two followers with unobstructed circulation meant that it moved nice, however the problem of becoming it inside one other plane was going to be painful. And it regarded large, despite the fact that it wasn’t truly that large.
Vandenbussche: It was additionally fairly intimidating if you had these two followers dealing with you and the Droid coming towards you.
A single steerable fan [left] that acted like a rudder was less complicated in some methods, however because the fan received bigger, the gyroscopic results grew to become onerous to handle. As an alternative of 1 steerable fan, how about two steerable followers? [right] Omnidirectional movement was potential with this setup, however packaging it within a Zip didn’t work.Zipline
Laszlo: We then began taking a look at configurations with a most important fan and a second smaller fan, with the larger fan on the again pushing ahead and the smaller fan on the entrance offering thrust for turning. The third fan we added comparatively late as a result of we didn’t wish to add it in any respect. However we discovered that [with two fans] the droid must spin comparatively rapidly to align to shifting winds, whereas with a 3rd fan we are able to simply push sideways within the course that we’d like.
What sort of intelligence does the Droid have?
The present design of Zipline’s Platform 2 Droid is constructed round a big thruster within the rear and two smaller thrusters at the back and front.Zipline
Wyrobek: The Droid has its personal little autopilot, and there’s a quite simple communications system between the 2 automobiles. It’s possible you’ll suppose that it’s a extremely complicated coordinated management drawback, however it’s not: The Zip simply form of hangs out, and the Droid takes care of the supply. The sensing problem is for the Droid to search out timber and powerlines and issues like that, after which discover a good supply web site.
Was there ever a degree at which you had been involved that the scale and weight and complexity wouldn’t be value it?
Wyrobek: Our mindset was to fail quick, to attempt issues and do what we wanted to do to persuade ourselves that it wasn’t a very good path. What’s enjoyable about this sort of iterative course of is oftentimes, you attempt issues and also you notice that truly, that is higher than we thought.
Laszlo: We first thought in regards to the Droid as a bit of little bit of a tax, in that it’s costing us further weight. But when your most important drone can keep excessive sufficient up that it avoids timber and buildings, then it may well simply float round up there. If it will get pushed round by the wind, it doesn’t matter as a result of the Droid can compensate.
Wyrobek: Protecting the Zip at altitude is a giant win in some ways. It doesn’t should spend vitality station-keeping, descending, after which ascending once more. We simply try this with the a lot smaller Droid, which additionally makes the hovering section a lot shorter. It’s additionally far more environment friendly to manage the small droid than the massive Zip. And having the entire sensors on the Droid very near the world that you simply’re delivering to makes that drawback simpler as properly. It could appear to be a extra complicated system from the surface, however from the within, it’s mainly making all the toughest issues a lot simpler.
Over the previous 12 months, Zipline has arrange a bunch of partnerships to make residential deliveries to customers utilizing Droid beginning in 2024, together with prescriptions from Cleveland Clinic in Ohio, medical merchandise from WellSpan Well being in Pennsylvania, tasty meals from Mendocino Farms in California, and a bit of little bit of every thing from Walmart beginning in Dallas. Zipline’s plan is to kick issues off with Platform 2 later this 12 months.
