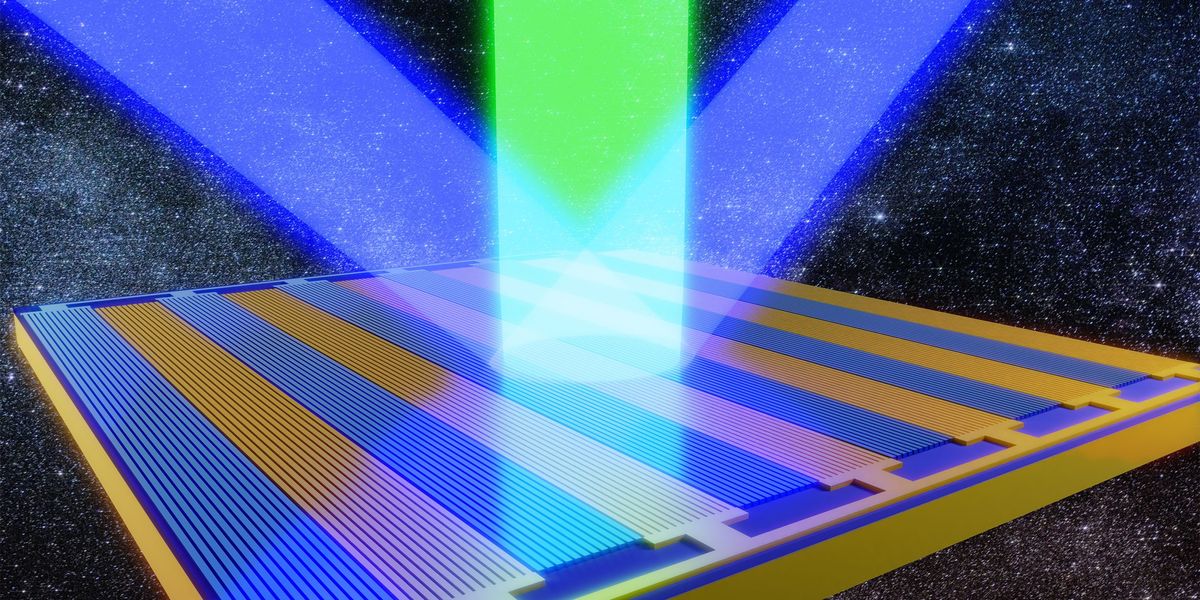

A brand new, tunable sensible floor can rework a single pulse of sunshine into a number of beams, every aimed in several instructions. The proof-of-principle growth opens the door to a spread of improvements in communications, imaging, sensing, and medication.
The analysis comes out of the Caltech lab of Harry Atwater, a professor of utilized physics and supplies science, and is feasible because of a kind of nano-engineered materials referred to as a metasurface. “These are artificially designed surfaces which principally include nanostructured patterns,” says Prachi Thureja, a graduate pupil in Atwater’s group. “So it’s an array of nanostructures, and every nanostructure primarily permits us to domestically management the properties of sunshine.”
The floor may be reconfigured as much as hundreds of thousands of occasions per second to alter how it’s domestically controlling mild. That’s fast sufficient to govern and redirect mild for purposes in optical information transmission similar to optical area communications and Li-Fi, in addition to lidar.
“[The metasurface] brings unprecedented freedom in controlling mild,” says Alex M.H. Wong, an affiliate professor {of electrical} engineering on the Metropolis College of Hong Kong. “The flexibility to do that means one can migrate current wi-fi applied sciences into the optical regime. Li-Fi and LIDAR function prime examples.”
Metasurfaces take away the necessity for lenses and mirrors
Manipulating and redirecting beams of sunshine usually includes a spread of standard lenses and mirrors. These lenses and mirrors could be microscopic in measurement, however they’re nonetheless utilizing optical properties of supplies like Snell’s Legislation, which describes the progress of a wavefront by completely different supplies and the way that wavefront is redirected—or refracted—in response to the properties of the fabric itself.
Against this, the brand new work gives the prospect of electrically manipulating a cloth’s optical properties through a semiconducting materials. Mixed with nano-scaled mirror parts, the flat, microscopic units may be made to behave like a lens, with out requiring lengths of curved or bent glass. And the brand new metasurface’s optical properties may be switched hundreds of thousands of occasions per second utilizing electrical alerts.
“The distinction with our gadget is by making use of completely different voltages throughout the gadget, we are able to change the profile of sunshine coming off of the mirror, despite the fact that bodily it’s not shifting,” says paper co-author Jared Sisler—additionally a graduate pupil in Atwater’s group. “After which we are able to steer the sunshine prefer it’s an electrically reprogrammable mirror.”
The gadget itself, a chip that measures 120 micrometers on either side, achieves its light-manipulating capabilities with an embedded floor of tiny gold antennas in a semiconductor layer of indium tin oxide. Manipulating the voltages throughout the semiconductor alters the fabric’s capability to bend mild—often known as its index of refraction. Between the reflection of the gold mirror parts and the tunable refractive capability of the semiconductor, loads of rapidly-tunable mild manipulation turns into potential.
“I believe the entire concept of utilizing a solid-state metasurface or optical gadget to steer mild in area and likewise use that for encoding info—I imply, there’s nothing like that that exists proper now,” Sisler says. “So I imply, technically, you’ll be able to ship extra info should you can obtain greater modulation charges. However because it’s sort of a brand new area, the efficiency of our gadget is extra simply to indicate the precept.”
Metasurfaces open up loads of new potentialities
The precept, says Wong, suggests a big selection of future applied sciences on the again of what he says are probably near-term metasurface developments and discoveries.
“The metasurface [can] be flat, ultrathin, and light-weight whereas it attains the features usually achieved by a collection of fastidiously curved lenses,” Wong says. “Scientists are at the moment nonetheless unlocking the huge potentialities the metasurface has obtainable to us.
“With enhancements in nanofabrication, parts with small function sizes a lot smaller than the wavelength are actually reliably fabricable,” Wong continues. “Many functionalities of the metasurface are being routinely demonstrated, benefiting not simply communication but in addition imaging, sensing, and medication, amongst different fields… I do know that along with curiosity from academia, numerous gamers from trade are additionally deeply and making sizable investments in pushing this expertise towards commercialization.”
