Wielding a shiny chrome scoop, Michael Rosenthal leans over and digs into the powder in a half-filled 55-gallon drum. He holds up the inside track and takes a pinch in his fingers and smooshes it to indicate me the feel. It’s like talc, nevertheless it’s an odd, lovely shade of pale green-gray. On cabinets throughout us are big white baggage of the stuff, every weighing a metric ton.
The truth that this specific powder exists in any respect is principally a miracle. That’s the inescapable conclusion for me at this level after a kind of impromptu, peripatetic mini-seminar performed by Rosenthal right here in
Mountain Go, Calif., close to the Nevada border. Rosenthal is cofounder and chief working officer of MP Supplies, the one firm in North America that’s mining uncommon earth ore and—that is the vital half—extracting from it giant portions of industrially helpful uncommon earth compounds.
The powder he’s exhibiting me is a mix of pure
uncommon earth oxides, principally neodymium with some praseodymium. It’s the important thing ingredient in numerous essential processes and merchandise in semiconductor manufacturing, electro-optical techniques, chemical catalysis, and, most notably, highly effective everlasting magnets. These are the magnets that go into almost all motors for electrical autos and into climate-control techniques, home equipment, and instruments, into the mills utilized in wind generators, and into the tons of of thousands and thousands of headphones and loudspeakers offered every year.

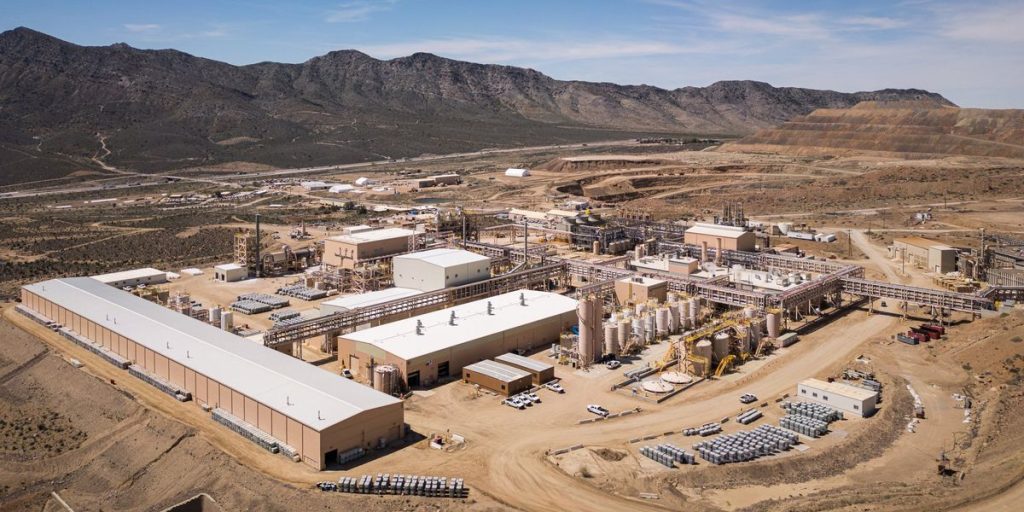

For the previous couple of hours, because the temperature climbed towards 43 °C (110 °F), I’ve been traipsing with Rosenthal round
MP’s open-pit mine and sprawling processing amenities within the northeastern Mojave Desert. Earlier, as we stood on the sting of the huge mine pit, Rosenthal identified within the partitions of sunshine grayish “nation rock” far under us the seams of brownish and reddish rock, which include the uncommon earth ores. “There’s been uncommon earth mining right here since 1952,” he mentioned. “We predict we’ve received at the least one other 30 years to go.”
That’s a comforting thought to authorities officers and tech executives in Europe, North America, Japan, and Korea, which have launched sprawling packages to provide the important components in america, Australia, and Canada. The efforts are aimed toward guaranteeing a provide of essential uncommon earths within the occasion that China—which produces
roughly 90 p.c of processed, industry-ready uncommon earths—decides to limit their export. Now, after greater than a decade of effort, and after billions of {dollars} spent by non-public corporations in addition to the U.S. and different governments, 2025 might be a yr when some outcomes of all this cash and exercise ought to develop into conspicuous.
“The observe file of success on this {industry} is abysmal.”
—Michael Rosenthal, cofounder, MP Supplies
MP Supplies, for instance, expects to extend manufacturing this yr of its neodymium praseodymium product, whereas additionally finishing a facility to provide completed, high-quality everlasting magnets close to Fort Value, Texas. In the meantime, MP’s solely giant competitor outdoors of China,
Lynas Uncommon Earths of Perth, Australia, expects to start work on a mammoth uncommon earth–processing facility being inbuilt Seadrift, Texas with US $258 million from the U.S. Division of Protection (DOD).
However each bit as doubtlessly transformative as these huge, publicized initiatives is one hardly recognized in any respect, even throughout the small group of uncommon earth traders, builders, and researchers. This yr, researchers at Oak Ridge Nationwide Laboratory will function and analyze a pilot line based mostly on a brand new chemical-extraction technique, invented by chemist
Santa Jansone-Popova. It seems able to lowering the solvents, water, and vitality wanted to extract uncommon earths by as a lot as 60 p.c as compared with the usual extraction course of. Such a technological advance might finally show indispensable for U.S., Australian, and different corporations struggling to compete towards the Chinese language uncommon earth juggernaut, which operates scores of processing amenities, and is much less constrained by environmental rules.
The Uncommon Earths Enterprise Defies Categorization
There’s just about nothing simple concerning the uncommon earths {industry}. It’s a technology-based business endeavor upon which many different international, essential, cutting-edge industries rely. It additionally occurs to be on the sizzling nexus of geopolitics and protection. And it’s an {industry} with an traditionally checkered environmental file that’s now pivotal to a number of the largest and fastest-growing industries aimed toward mitigating local weather change.
The unease over China’s dominance of uncommon earth manufacturing spiked final December, when China introduced it will
start banning the export to america of sure essential supplies. Notably, the ban doesn’t embody uncommon earths, however the prohibition evoked a 2010 incident by which China briefly minimize all uncommon earth gross sales to Japan after a fishing dispute. Three years later, a report from the U.S. Congressional Analysis Service created a furor by stating that every F-35 Lightning II fighter jet contained 414 kilograms (about 920 kilos) of uncommon earth supplies.
Fairly quickly, the cash started gushing. It got here from U.S. companies, notably
the DOD, in addition to others in Japan and Korea and from non-public traders. Scores of corporations and ventures sprang up—eventually rely, greater than 146 giant uncommon earth initiatives had been underway, of which at the least 96 had been in North America, Australia, Europe, and South America.
In america, most efforts give attention to self sufficiency. However the highway from right here to there may be going to be fairly tough. “Making uncommon earths is basically, actually onerous,” says Rosenthal. “It’s very costly, you want numerous gear, and the observe file of success on this {industry} is abysmal.”
So, not surprisingly, nearly all of these 146 huge uncommon earth initiatives are mining ventures, not processing ones, and so they’ll do little or no to diversify the uncommon earth provide. “It’s vital that we’ve a extra various provide chain, outdoors of China, and a much bigger one,” agrees Rosenthal. “However the {industry} is poorly served by the quantity of hype and unjustifiable press relating to assets (exploratory mine websites) that aren’t nicely understood. What we actually want extra of is processing capabilities, from all components of the provision chain.” A brand new uncommon earth mine, Rosenthal factors out, does nothing to extend the geographical range of provide if its output should go to China to be processed into uncommon earth oxides.
Neodymium-bearing uncommon earth compounds, corresponding to this neodymium praseodymium oxide powder produced by MP Supplies at its Mountain Go web site, are of immense industrial, navy, and business significance.MP Supplies
Right this moment, such preparations are frequent. China’s dominance of uncommon earth processing is such that even MP Supplies Corp., the mum or dad firm that controls the Mountain Go mining and processing operations, sends a few of its ore to China for processing. And a Chinese language firm, Shenghe Sources Holding Co., owns roughly 7.7 p.c of the inventory of MP Supplies.
“China has constructed at the least 50 uncommon earth separation crops within the final 10 years,” Rosenthal estimates. For comparability, outdoors of China, there are solely three separation amenities able to producing uncommon earth oxides at industrial scale. One is Mountain Go; one other is the Silmet manufacturing facility in Sillamäe, Estonia, which is owned by Toronto-based Neo Efficiency Supplies; and the third is the large
Lynas superior supplies plant, close to Kuantan in Malaysia. (One other Lynas facility, in Kalgoorlie, Australia, produces a mix of uncommon earth carbonates that may be changed into industrially helpful oxides at buyer websites.)
Redistributing Refining
Refining uncommon earth ore into uncommon earth oxides begins with a course of referred to as
beneficiation within the {industry}. Right here, the rocks are first damaged down into chunks of gravel which can be then blended with water and crushed right into a slurry. Then, within the comparatively environmentally pleasant course of used at Mountain Go, referred to as froth flotation, a sort of chemical reagent referred to as a surfactant is added to the slurry. This combination is launched right into a collection of vessels, or cells, by which the surfactants trigger the uncommon earth–bearing grains to bind selectively to bubbles floating to the highest of the cells. Because the bubbles float upwards, they carry the uncommon earth–bearing grains with them, separating them from the waste grains. After a number of levels, what’s left after drying is a nice powder referred to as uncommon earth focus. The aim is for this focus to be at the least 60 p.c uncommon earth oxides by weight.
The subsequent step is named leaching. At Mountain Go, the focus is roasted after which leached with hydrochloric acid to place the high-value uncommon earth components into answer. A lot of the cerium, a low-value uncommon earth, is eliminated on this stage.
Luggage of neodymium praseodymium oxide powder, every containing one metric tonne of the compound, await transport from a warehouse on the Mountain Go web site in California.Michael Tessler/MP Supplies
The subsequent stage is essentially the most sophisticated and vital. Right here, the particular uncommon earth components being sought, for instance neodymium and praseodymium, are separated from the opposite uncommon earths. The usual method is named
solvent extraction, and it’s not a lot totally different from the method invented 70 years in the past by researchers at Argonne Nationwide Laboratory and Oak Ridge Nationwide Laboratory.
The strategy is named liquid-liquid as a result of it makes use of two immiscible solvents, one water- and the opposite oil-based. The uncommon earths are dissolved in one of many solvents, which is blended vigorously with the opposite one. To separate out particular uncommon earths, the method makes use of an natural extractant and exploits refined variations within the affinity of that extractant for various uncommon earth components underneath specific course of circumstances.
Right here’s the way it works. There’s a water-based, acidic answer containing the uncommon earths, which is named the aqueous part. It’s blended with an oil-based, or natural, part, consisting of that natural extractant and a diluent. Technicians regulate the method circumstances, corresponding to temperature and stress, to permit the extractant to bind preferentially to the particular uncommon earth ions to be recovered, say neodymium. When the aqueous part and the natural part are blended vigorously, these neodymium ions bind to the extractant, which pulls them into the natural part. As a result of this oil-based part isn’t miscible with the aqueous one, the neodymium ions are separated from the others. In follow, the vigorous combining happens in vessels referred to as mixers, after which the mixed liquids are pushed into an adjoining container referred to as a settler, the place the 2 phases slowly separate, with the goal uncommon earths accumulating within the natural part and the less-desired uncommon earths being scrubbed again into the aqueous part.
This mixing and settling occurs time and again. Every time the focus of the specified uncommon earths is elevated incrementally. After many iterations, the goal uncommon earths are then sometimes transferred again to the aqueous part. Then they’re recovered by the use of a precipitation method.
If all of it sounds fairly simple, it’s not. At Mountain Go, Rosenthal takes me into the constructing, bigger than a soccer discipline, the place the extraction takes place. I’ve toured loads of imposing industrial and technological websites, however I’ve by no means seen something fairly like this. After my eyes regulate to the dim mild, I see columns of giant, paired vessels, towering over me, off into the space. They’re every about 20 cubic meters (roughly 5,000 gallons), and there are at the least 100 of them (the precise quantity is a commerce secret, I’m instructed). These are the mixers and settlers.
How Oak Ridge Reinvented Uncommon Earth Extraction
Correctly tuned, the liquid-liquid solvent-extraction course of might be extraordinarily efficient, producing uncommon earth oxides with purity better than 99.9 p.c. Nevertheless it has some substantial drawbacks. Within the course of, the natural part is a phosphate-based compound, corresponding to tributyl phosphate, and the aqueous part is a powerful acid, corresponding to hydrochloric, nitric, or sulfuric. These solvents and reagents are utilized in huge portions, which might be recycled however should all be disposed of finally.
Plenty of analysis now’s aimed toward
figuring out higher extractants—for instance, ones that allow much less acidic processes or that chemically bind extra selectively with the specified uncommon earths. A measure of the effectiveness of an extractant is separation issue, which signifies how a lot of the goal uncommon earth factor is pulled from answer relative to adjoining uncommon earths as they undergo one spherical of mixer-settlers. For the traditional system in the present day, the separation elements of adjoining uncommon earths fluctuate between 1.1 and about 6. For comparability, separation elements for different chemical-industrial processes can exceed 100.
“When you can double or triple the separation issue, then you might halve or cut back the variety of mixer-settlers by as much as two-thirds,” says Tom Lograsso, director of a U.S. government-led consortium referred to as the
Essential Supplies Innovation Hub, which is sponsoring analysis on the issue. “If there was a panacea to cut back the prices, the capital prices, the land utilization, the water utilization, and enhance the environmental soundness of the processing, it will be to give you chemical substances which can be environmentally secure, and that might additionally do a greater job of separating the uncommon earths from one another.”
Analysis chemist Santa Jansone-Popova, at Oak Ridge Nationwide Laboratory, invented the DGA-6 chemical that might revolutionize uncommon earth extraction.Carlos Jones/ORNL/U.S. Division of Vitality
At Oak Ridge, the undertaking led by Jansone-Popova, with funding from the Essential Supplies Innovation hub, is doing precisely that. Jansone-Popova notes that with the traditional course of, the options develop into extra acidic as they proceed by way of successive levels of mixer-settlers.
“As a way to get well these uncommon earth components in that oil-aqueous separation system,” she explains, “it’s a must to use extra concentrated aqueous answer—extra acidic answer,” she notes. That, in flip, she provides, requires the usage of alkali to decrease the acidity of that answer, in order that the aqueous stream might be recycled. “Which means including extra chemical substances to the system, which isn’t best, and which, on the finish, leads to producing extra waste, producing environmental issues,” she says.
Her answer? Use an extractant that doesn’t function based mostly on changes in acidity. “It operates by a unique mechanism, changes in ionic power,” says Jansone-Popova. “Which means we will begin with a extra concentrated acid answer, after which we will recycle that acid answer with out including any chemical substances. And after we need to get well these uncommon earth components, we’re utilizing a really dilute acidic answer that, too, might be recycled after the precipitation of the uncommon earths. We are able to principally get well these uncommon earth components with water. There aren’t any further chemical substances added to the system, and all of the acid that we’re utilizing within the course of might be recycled. That’s the wonder.”
And it’s not even
all the wonder. The brand new extractants are additionally much more selective, bettering the separation issue by two to 3 instances as compared with the prevailing processes.
A brand new high-efficiency course of for extracting particular uncommon earth components was pioneered at Oak Ridge Nationwide Laboratory. The method is determined by a chemical, diglycolamide-6 (DGA-6) [in beaker above] which is now being manufactured by Marshallton Analysis Labs.Carlos Jones/ORNL/U.S. Division of Vitality
The brand new extractant is from a chemical household referred to as diglycolamides, or DGAs. Jansone-Popova refers back to the one her group is at the moment growing as DGA-6. It’s used within the oil part, and one other new extractant, additionally developed by her group, is used within the aqueous part. “Our aim is to do the circulation sheet demonstrations and to persuade {industry} that it is a higher course of,” she declares.
She already has one convert in {industry}. Mac Foster is co-owner of
Marshallton Analysis Laboratories, which gives chemical substances for extraction processes within the nuclear and uncommon earth industries. He’s been collaborating with Jansone-Popova, and he likes what he sees. “In comparison with the state-of-the-art [traditional-process extractants], this new class of DGAs is way cleaner in its operation as a result of these extractants are impartial,” he says. “They’re not acids. So that they don’t require huge swings involving neutralization of enormous quantities of acid. They’re extra environment friendly.”
Marshallton, which has a license to fabricate DGA-6, has been making comparatively small portions of it for analysis and testing at Oak Ridge. The corporate has additionally been offering recommendation on commercialization to Jansone-Popova’s group. “We’ve improved the manufacturing course of for DGA-6,” Foster provides. “By that, I imply what we’re doing isn’t within the literature. And it results in a decrease value to make the extractant. It’s higher fitted to scaling up.”
Again at Mountain Go, I ask Rosenthal concerning the Oak Ridge work. He likes what he’s heard thus far. “If the Oak Ridge extractant is extra selective, we wouldn’t want as many tanks,” he notes.
Over the long term, Western uncommon earth producers are going to wish one thing extraordinary to bolster their efforts to compete with their Chinese language counterparts—who’re additionally pursuing diglycolamides as
extractants for uncommon earth processing. If it isn’t the Oak Ridge course of it’ll should be one thing very very similar to it. And the earlier the higher.
