This yr, two firms—Santa Clara, California-based Anello Photonics and Montreal-based One Silicon Chip Photonics (OSCP)—have launched new gyroscope–on-a-chip navigation programs, permitting for exact heading and distance monitoring with out satellite tv for pc indicators.
Such inertial navigation is more and more necessary at this time, as a result of GPS is vulnerable to jamming and spoofing, which may disrupt navigation or present deceptive location knowledge. These issues have been well-documented in battle zones, together with Ukraine and the Center East, the place navy operations have confronted vital GPS interference. For drones, which depend on GPS for positioning, the lack of sign may be catastrophic, leaving them unable to navigate and generally leading to crashes.
Optical gyroscopes have lengthy been seen as a substitute navigation expertise to satellite-based international navigation programs. Bigger-sized models like ring-laser gyroscopes have been round for the reason that Seventies. Nonetheless, shrinking these units right down to chip-size was far simpler mentioned than achieved.
The optical gyroscopes produced beginning within the mid-Seventies had difficulties sustaining the required optical sign energy for exact rotation sensing. Shrinking them solely made the signal-to-noise ratio worse. So, as most microelectronic units adopted the miniaturization pathway described by Moore’s Regulation, light-based gyroscopes remained huge, cumbersome, and energy hungry.
Should you drive 100 kilometers, the system’s distance measurement will probably be correct to inside 100 meters, or 0.1 p.c of the gap traveled.” —Mario Paniccia, Anello Photonics
That was the state of issues till Caltechelectrical engineering and medical engineering professor Ali Hajimiri and his crew made a breakthrough that overcame earlier dimension and accuracy limitations. In a 2018 paper, they described how they created a solid-state gyroscope sufficiently small to suit on a grain of rice. Just like the optical gyroscopes that appeared earlier than it, this gyroscope leveraged the Sagnac impact, a precept first demonstrated in 1913 by French physicist Georges Sagnac.
The Sagnac impact happens when a beam of sunshine is break up into two and despatched in reverse instructions alongside a round path. If the gadget rotates, one beam reaches the detector forward of the opposite, permitting exact measurement of the rotation angle. As a result of this methodology doesn’t depend on exterior indicators, it’s proof against electromagnetic interference, vibration, and cyberattacks by way of an open communication channel—making it a perfect answer for purposes the place GPS is unreliable or utterly denied.
By introducing a way for eliminating noise, Hajimiri and his colleagues had been capable of create an optical gyroscope that was one–5 hundredth the dimensions of commercially obtainable fiber-optic gyroscopes and comparable by way of sensitivity.

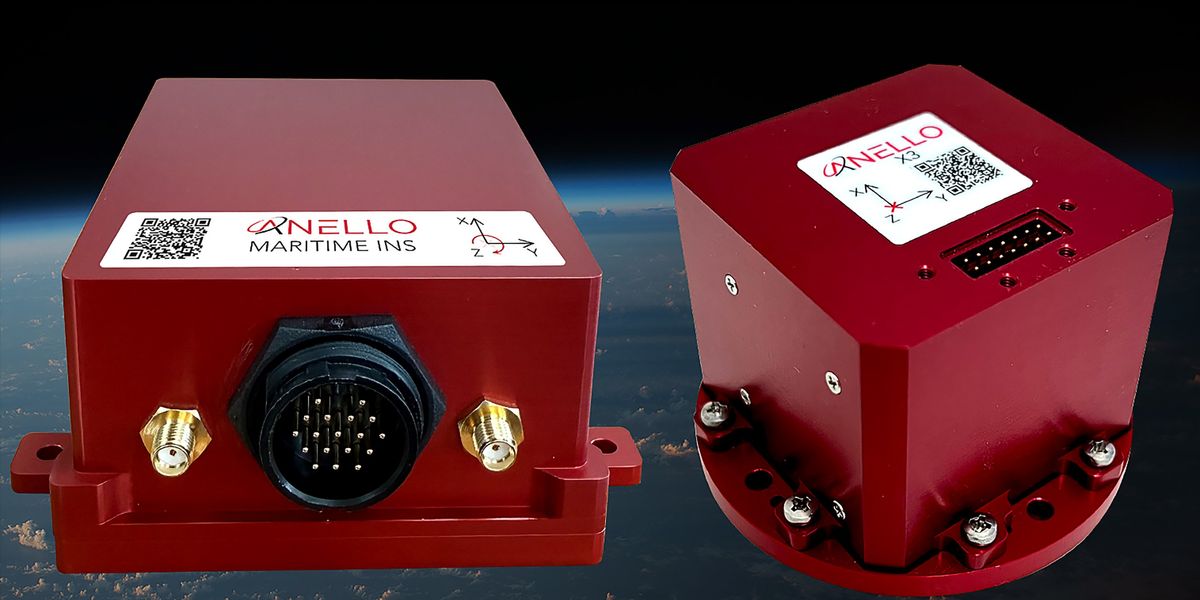

This pocket-size, chip-based optical gyroscope from Anello Photonics is simply as correct as bulkier variations.Anello Photonics
Anello and OSCP Enter the Market
Lower than a decade after Hajimiri’s breakthrough, Anello Photonics and OSCP are actually trying to reshape the navigation market with their gyroscope-based programs. They’ve launched additional refinements that permit extra miniaturization with out diminishing the gyroscopes’ effectiveness. Anello’s low-loss silicon nitride waveguides permit mild to flow into longer throughout the gyroscope, enhancing sign energy and decreasing error accumulation. Anello’s methods additional suppress different noise sources, so a smaller waveguide holding much less mild—and subsequently a fainter sign—continues to be ample for correct rotation readings.
The outcome, says Mario Paniccia, Anello CEO, was showcased at CES in 2024 and earlier this yr. Paniccia explains that his firm’s inertial measurement models (IMUs), which encompass three chip-based gyroscopes and extra parts, match within the palm of an individual’s hand. They ship excessive precision for a number of purposes, together with agriculture, the place autonomous tractors should preserve completely straight furrows for as much as 800 meters. Longer distances are additionally no downside for the navigation system, he says. “Should you drive 100 kilometers,” says Paniccia, “the system’s distance measurement will probably be correct to inside 100 meters, or 0.1 p.c of the gap traveled.”
OSCP can be making strides in miniaturized navigation expertise. At CES 2025, OSCP founder and CEO Kazem Zandi unveiled an upgraded multi-gyroscope IMU that’s half the dimensions of its predecessor. “It’s not solely smaller, but in addition extra energy environment friendly and cheaper,” mentioned Zandi on the Las Vegas–based mostly tech expo. “These gyroscopes can present useless reckoning with location accuracy to inside centimeters.”
Anello’s and OCSP’s IMUs are designed to work alongside GPS, continuously monitoring location inputs. If GPS interference is detected, synthetic intelligence (AI) inside both firm’s system routinely shifts navigation management to the gyroscopes. “If, for instance, you’re in New York,” explains Paniccia, “and the gyroscopes point out that you just’ve traveled 100 meters ahead, however the GPS says you’re now in Texas, the algorithms know to port management over to the [gyroscope].”
In accordance with Paniccia, Anello’s newest system was designed particularly for unmanned underwater and floor automobiles working within the vastness of the open ocean, the place no landmarks exist to help navigation. “Within the ocean, every little thing appears to be like the identical,” he says. Within the maritime area, through which currents make navigation extra difficult than monitoring location on land or within the air, Paniccia says the Anello gadget’s location error is extra like 3 or 4 p.c of the gap traveled.
Paniccia says he envisions a future the place miniaturized gyroscopes might be embedded into handheld units for firefighters, permitting them to navigate by means of smoke-filled buildings the place stairways and exits are not seen. “It can basically be an digital compass,” he says.
