On the subject of smartphone cameras, larger is healthier. Bigger picture sensors and lenses have extra gentle to work with, to allow them to resolve extra particulars. That’s particularly necessary, as a result of the filters that create colour photographs additionally block about 70 % of incoming gentle.
These colour filters—laid out as a grid of pink, inexperienced, and blue over the picture sensor’s pixels—have been round for many years. However new approaches promise to take advantage of the physics of sunshine to create colour photographs with out blocking out so many photons. Three such paths to sharper photographs have been introduced on the 2023 IEEE Worldwide Electron System Assembly (IEDM). Now, these strategies are starting to emerge from the laboratory stage.
Samsung, as an example, will present the entrance digicam for China-based Xiaomi’s new telephone that makes use of Samsung’s nano-prism expertise for improved low-light efficiency. The expertise doesn’t change colour filters; it makes use of diffraction to gather extra gentle in every color-specific pixel. This enhances gentle sensitivity by 25 %, based on the corporate.
In the meantime, two new startups have developed methods to seize colour photographs with out filters. An Imec spinoff known as Eyeo this month introduced that it has raised €15 million in seed funding. And PxE Holographic Imaging showcased expertise that mixes depth sensing and colour imaging, in January at this 12 months’s Client Electronics Present (CES).
Each PxE and Eyeo are appropriate with CMOS sensors, the commonest digital picture sensor utilized in cameras in the present day. “The CMOS sensor is a really mature and robust platform to construct upon. You’ve got it in each machine in the present day,” says PxE’s founder and CEO Yoav Berlatzky. However “everyone needs extra photons reaching their CMOS sensors.”
Eyeo’s Filter-Free Coloration Digital camera
Eyeo goals to commercialize the analysis introduced by Imec at IEDM in 2023 for functions in client electronics, safety, and extra. By eradicating the colour filter, the startup’s picture sensor is made 3 times as delicate as conventional CMOS sensors. “It’s as if we’re lastly opening the eyes of a picture sensor,” says Eyeo CEO Jereon Hoet.
The colour splitters in Eyeo’s picture sensor information gentle of various wavelengths to the suitable pixels.Eyeo
It really works by sending gentle by means of vertical waveguides that break up gentle based mostly on wavelength, then steer the photons to the suitable pixel. The waveguides act like a funnel, so these pixels could be shrunk right down to lower than 0.5 micrometers in width, about half the scale of a typical smartphone pixel. The expertise additionally higher matches the colour sensitivity of the human eye than in the present day’s filter-based imagers, based on the Imec analysis.
The colour splitting tech is designed to be made with the prevailing instruments and processes already utilized in CMOS foundries. The problem comes on the software program aspect. Eyeo is now working to make sure the sensor is appropriate with its potential clients’ techniques, based on Hoet.
By way of functions, Hoet says the good thing about Eyeo’s smaller, extra delicate picture sensors is very clear for smartphones. Nevertheless, he expects the expertise will first be adopted for different makes use of, comparable to safety techniques for low-light situations or augmented actuality units that require ultracompact sensors.
PxE Brings 3D to CMOS
The essential thought behind PxE’s method is analogous. Each corporations purpose to mimic colour filters with out dropping photons and “someway get the colours in the proper place on the proper pixel” by bending gentle waves, Bertlatzky summarizes.

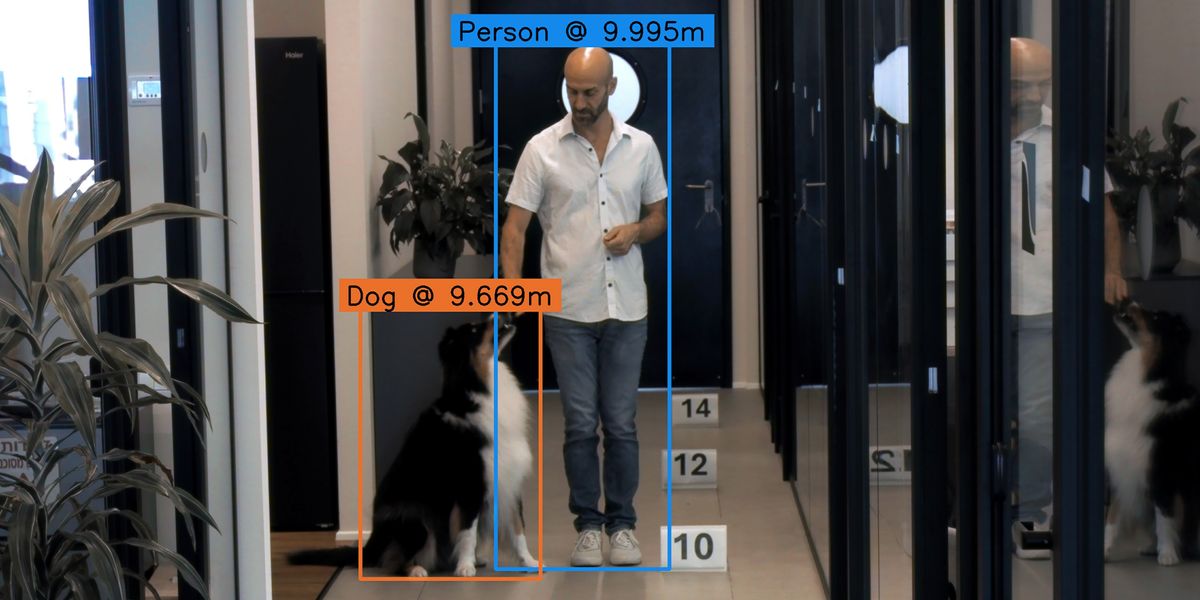

On this model of the photograph above, pink traces point out an object is nearer, whereas blue traces imply it’s farther away. PxE
PxE’s expertise makes use of a layer of diffractive materials it calls a “holocoder” to not solely create colour photographs but additionally to behave as a depth sensor (therefore the “holographic” a part of the corporate title). When white gentle passes by means of the holocoder, it creates an interference sample that’s recorded by the sensor. PxE’s algorithms then use that sample to reconstruct a digital 3D picture—a hologram. The interference sample additionally encodes details about the wavelength of sunshine, so colour (and infrared) photographs can concurrently be reconstructed.
Berlatzky says PxE’s {hardware} is “much less unique” than colour splitters and different approaches that use specifically engineered metasurfaces. A lot of its energy comes from the software program. “The idea of the algorithm is the physics of sunshine,” Berlatzky explains. “You’ll be able to consider it as if we’re working it in reverse, from the CMOS sensor again out to the world, and reconstructing what the digicam is definitely seeing, when it comes to depth and picture.”
Like Eyeo, PxE’s picture sensor may very well be utilized in a spread of functions—notably in those who have already got separate depth and picture sensors, comparable to automobiles and smartphones.
