Land mines have been round in a single kind or one other for greater than a thousand years. By now, you’d assume a easy and protected manner of finding and eradicating the gadgets would’ve been engineered. However that’s not the case. In truth, up till World Battle II, the commonest methodology for locating the explosives was to prod the bottom with a pointed stick or bayonet. The hockey-puck-size gadgets had been buried about 15 centimeters under the bottom. When somebody stepped on the bottom above or close to the mine, their weight triggered a stress sensor and brought about the system to blow up. So mine clearing was almost as harmful as simply strolling via a minefield unawares.
Throughout World Battle II, land mines had been extensively utilized by each Axis and Allied forces and had been accountable for the deaths of 375,000 troopers, in response to the Warfare Historical past Community.
In 1941 Józef Stanislaw Kosacki, a Polish alerts officer who had escaped to the UK, developed the primary transportable system to successfully detect a land mine with out inadvertently triggering it. It proved to be twice as quick as earlier mine-detection strategies, and was quickly in vast use by the British and their allies.
The Engineer Behind the Transportable Mine Detector
Earlier than inventing his mine detector, Kosacki labored as an engineer and had developed instruments to detect explosives for the Polish Armed Forces.
After receiving a bachelor’s diploma in electrical engineering from the Warsaw College of Know-how in 1933, Kosacki accomplished his year-long necessary service with the military. He then joined the Nationwide Telecommunications Institute in Warsaw as a supervisor. Then, as now, the company led the nation’s R&D in telecommunications and knowledge applied sciences. In 1937 Kosacki was commissioned by the Polish Ministry of Nationwide Defence to develop a machine that would detect unexploded grenades and shells. He accomplished his machine, but it surely was by no means used within the subject.
Polish engineer Józef Kosacki’s transportable land-mine detector saved 1000’s of troopers’ lives in World Battle II. Navy Historic Workplace
When Germany invaded Poland in September 1939, Kosacki returned to lively obligation. Due to his background in electrical engineering, he was positioned in a particular communications unit that was accountable for the maintenance of the Warszawa II radio station. However that obligation lasted solely till the radio towers had been destroyed by the German Military a month after the invasion.
With Warsaw beneath German occupation, Kosacki and his unit had been captured and brought to an internment camp in Hungary. In December 1939, he escaped and ultimately discovered his strategy to the UK. There he joined different Polish troopers within the 1st Polish Military Corps, stationed in St. Andrews, Scotland. He educated troopers in the usage of wi-fi telegraphy to ship messages in Morse code.
Then tragedy struck.
Tragedy Impressed Engineering Ingenuity
The invention of the transportable mine detector happened after a horrible accident on the seashores of Dundee, Scotland. In 1940, the British Military, fearing a German invasion, buried 1000’s of land mines alongside the coast. However they didn’t notify their allies. Troopers from the Polish tenth Armored Cavalry Brigade on a routine patrol of the seaside had been killed or injured when the land mines exploded.
This occasion prompted the British Military to launch a contest to develop an efficient land-mine detector. Every entrant needed to move a easy take a look at: Detect a handful of cash scattered on the seaside.
Kosacki and his assistant spent three months refining Kosacki’s earlier grenade detector. Through the competitors, their new detector positioned the entire cash, beating the opposite six gadgets entered.
There’s some murkiness in regards to the detector’s actual circuitry, as befits a know-how developed beneath wartime safety, however our greatest understanding is that this: The instrument consisted of a bamboo pole with an oval-shaped wood panel at one finish that held two coils—one transmitting and one receiving, in response to a 2015 article in Aerospace Analysis in Bulgaria. The soldier held the detector by the pole and handed the wood panel over the bottom. A wood backpack encased a battery unit, an acoustic-frequency oscillator, and an amplifier. The transmitting coil was linked to the oscillator, which generated present at an acoustic frequency, writes Mike Croll in his e-book The Historical past of Landmines. The receiving coil was linked to the amplifier, which was then linked to a pair of headphones.

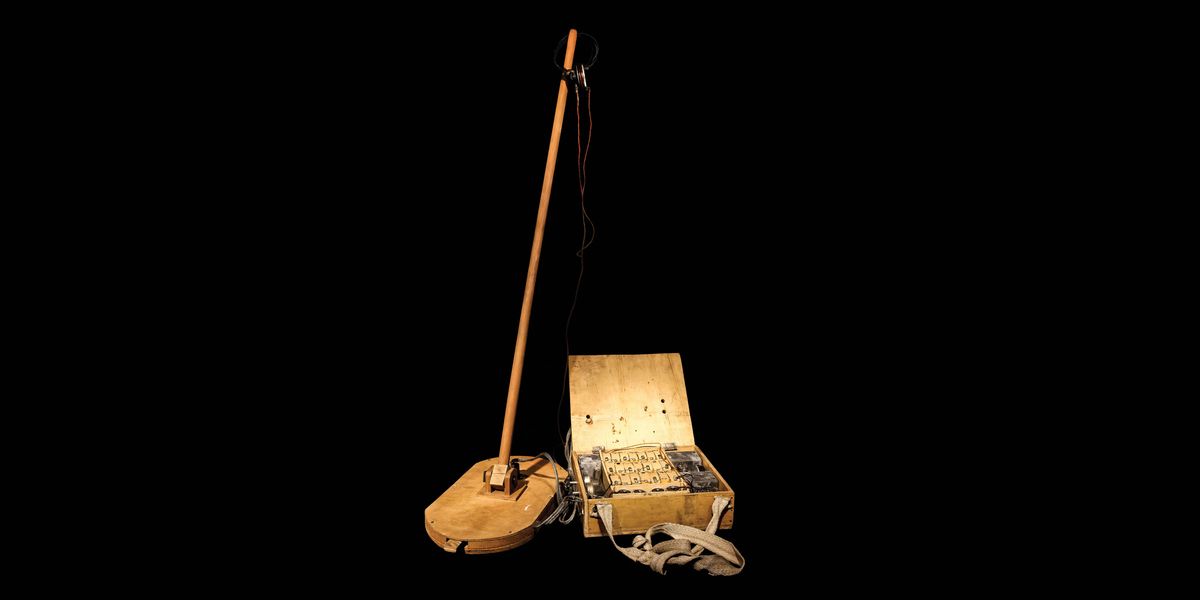

The detector weighed lower than 14 kilograms and operated very like the metallic detectors utilized by beachcombers right this moment. Michał Bojara/Nationwide Museum of Know-how in Warsaw
When the panel got here near a metallic object, the induction stability between the 2 coils was disturbed. Through the amplifier, the receiving coil despatched an audio sign to the headphones, notifying the soldier of a possible land mine. The gear weighed slightly below 14 kilograms and may very well be operated by one soldier, in response to Croll.
Kosacki didn’t patent his know-how and as a substitute gave the British Military entry to the system’s schematics. The one recognition he obtained on the time was a letter from King George VI thanking him for his service.
Detectors had been shortly manufactured and shipped to North Africa, the place German commander Erwin Rommel had ordered his troops to construct a defensive community of land mines and barbed wire that he known as the Satan’s Gardens. The minefields stretched from the Mediterranean in northern Egypt to the Qattara Despair in western Egypt and contained an estimated 16 million mines over 2,900 sq. kilometers.
Kosacki’s detectors had been first used within the Second Battle of El Alamein, in Egypt, in October and November of 1942. British troopers used the system to scour the minefield for explosives. Scorpion tanks adopted the troopers; heavy chains mounted on the entrance flailed the bottom and exploded the mines because the tank moved ahead. Kosacki’s mine detector doubled the pace at which such closely mined areas may very well be cleared, from 100 to 200 sq. meters an hour. By the top of the battle, his invention had saved 1000’s of lives.
Kosacki’s land-mine detector was first utilized in Egypt, to assist clear an enormous minefield laid by the Germans. The fundamental know-how continued for use till 1991.Nationwide Military Museum
The fundamental design with minor modifications continued for use by Canada, the UK, and america till the top of the First Gulf Battle in 1991. By then, engineers had developed extra delicate transportable detectors, in addition to remote-controlled mine-clearing methods.
Kosacki wasn’t publicly acknowledged for his work till after World Battle II, to forestall retribution towards his household in German-occupied Poland. When Kosacki returned to Poland after the battle, he started educating electrical engineering on the Nationwide Centre for Nuclear Analysis, in Otwock-Świerk. He was additionally a professor at what’s now the Navy College of Know-how in Warsaw. He died in 1990. The prototype of Kosacki’s detector proven at prime is housed on the museum of the Navy Institute of Engineering Know-how, in Wroclaw, Poland.
Land Mines Are Nonetheless a Worldwide Drawback
Land-mine detection has nonetheless not been perfected, and the explosive gadgets are nonetheless an enormous drawback worldwide. On common, one particular person is killed or injured by land mines and different explosive ordnance each hour, in response to UNICEF. At this time, it’s estimated that 60 international locations are nonetheless contaminated by mines and unexploded ordnance.
Though transportable mine detectors proceed for use, drones have grow to be one other detection methodology. For instance, they’ve been utilized in Ukraine by a number of humanitarian nonprofits, together with the Norwegian Individuals’s Assist and the HALO Belief.
Nonprofit APOPO is taking a special method: coaching rats to smell out explosives. The APOPO HeroRATs, as they’re known as, solely detect the scent of explosives and ignore scrap metallic, in response to the group. A single HeroRAT can search an space the dimensions of a tennis court docket in half-hour, as a substitute of the 4 days it will take a human to take action.
A part of a persevering with sequence historic artifacts that embrace the boundless potential of know-how.
An abridged model of this text seems within the January 2025 print difficulty as “The First Land-Mine Detector That Really Labored.”
