Of the numerous applied sciences invented over the previous half century, high-temperature superconductors are among the many most promising and but additionally probably the most irritating. Many years of analysis has yielded an assortment of supplies that superconduct at temperatures as excessive as -140 °C (133 kelvins) at ambient stress. And but business functions have been elusive.
Now, although, a few developments might lastly push high-temperature superconductors into business use. One is the provision, at comparatively average value, of copper-oxide-based superconducting tape, which is being produced by a couple of firms for startups engaged on tokamak fusion reactors. The reactors use the superconducting tape, which is often manufactured from yttrium barium copper oxide, in highly effective electromagnets. The opposite improvement entails a unique group of startups which might be utilizing the tape to construct electrical motors with very excessive power-to-weight ratios, primarily to be used in electrical plane.

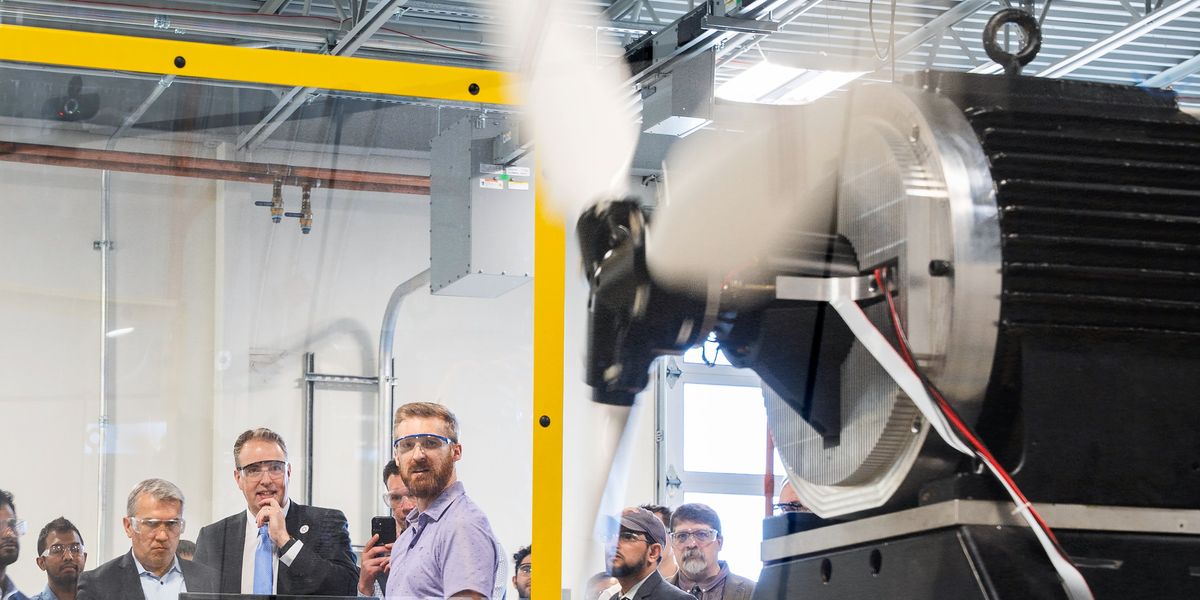

Amongst that latter group of startups is Hinetics, shaped in 2017 to commercialize analysis led by Kiruba Haran on the College of Illinois Urbana-Champaign. This previous April, the corporate examined a prototype motor outfitted with superconducting rotor magnets. Based on Haran, the checks, which included spinning a propeller in a laboratory setup, validated key elements of the corporate’s designs for superconducting motors that can function at energy ranges of 5 and 10 megawatts. Such ranges could be excessive sufficient to energy a regional passenger airliner with a number of motors. The work was funded partially by a grant from the Superior Analysis Initiatives Company–Vitality (ARPA-E).
“HTS [high temperature superconductors] are having a second, as a result of the prices are coming down quickly, pushed by all of the work on fusion,” Haran says. “Lots of people are ramping up manufacturing, and new startups, and new capabilities, are coming into the market.”
Hinetics is one in all maybe a dozen firms, giant and small, making an attempt to make use of high-temperature superconductors to construct extraordinarily environment friendly motors with very excessive energy density. These embrace aerospace large Airbus, which is engaged on a superconducting airliner below a program known as ZEROe, in addition to Toshiba, Raytheon, and U.Ok. startup HyFlux. Nonetheless, Hinetics is taking an uncommon method.
Widespread approaches to constructing a superconducting machine use the superconducting materials for both the rotor or stator coils, or each. Sometimes, the coils are cooled with a liquid or fuel stored at a sufficiently low temperature by an exterior cryocooling system. The fluid cools the superconducting coils by convection, by bodily flowing by way of warmth exchangers involved with the coils and carrying away warmth because it does so. The system has been used efficiently in some experimental motors and mills, however it suffers from a number of elementary issues. An enormous one is the necessity to flow into the cooling fluid by way of the rotor coils, that are embedded in a rotor meeting that’s spinning at maybe 1000’s of revolutions per minute. One other drawback is that this method requires a sophisticated cryocooling system that features pumps, seals, gaskets, pipes, insulation, a rotary coupling that transfers the cryogen into and out of the rotor, and different elements that may fail and that add appreciable weight.
The rotor coils in an experimental Hinetics electrical motor are manufactured from a high-temperature superconductor. They’re cooled by a cryocooler that runs axially down the middle of the motor. The rotor meeting and the cryocooler are enclosed inside a vacuum vessel.Hinetics
Hinetics’s Revolutionary Concept: Spin the Cryocooler
Hinetics’s system, alternatively, makes use of a self-contained cryocooler that’s sufficiently small to be hooked up to the rotor, and which spins together with it, eliminating the necessity to cross fluids into and out of a spinning vessel. With this association, “you don’t should immerse the superconductor into the fluid,” notes Laurent Pilon, an affiliate director for know-how at ARPA-E. As an alternative, “there’s a cryocooler, and a chilly connection, and also you pull out the warmth from the superconducting magnetic coils to the cryocooler, performing a refrigeration cycle. The sweetness right here is that it simplifies all the things as a result of now you simply have the cryocooler that spins with the shaft.”
On this configuration, the rotor meeting, together with the coils, is cooled by conduction quite than convection. The rotor is put in inside a vacuum chamber. Warmth from the superconducting magnet meeting is transferred by way of a “thermal bus,” which is principally only a disk-shaped copper construction that conducts the warmth to the cryocooler, which is hooked up to the opposite aspect of the copper disk.
One of many challenges, Haran says, was discovering a cryocooler small and lightweight sufficient to spin at excessive charges and hold functioning whereas doing so. For its proof-of-concept unit, the Hinetics staff used an off-the-shelf Stirling-cycle cooler from Sunpower. It will probably take away solely 10 watts of warmth from the rotor meeting however, on this configuration, that’s all that’s wanted to maintain the rotor coils superconducting, Haran says.
One potential downside of the system is that, due to this comparatively low heat-removal capability, the cryocooler takes a couple of hours to chill the superconducting magnet sufficiently to begin working. Future variations will cut back the interval wanted, in line with Haran. And on the intense aspect, the low heat-removal charge means excessive effectivity, as a result of the cooler has simply sufficient energy to take care of the low temperatures wanted throughout operation, and never a lot extra capability.
To offer electrical energy to the spinning cryostat and rotor magnets the prototype used a slip ring. However future variations of the motor will use a wi-fi system, probably primarily based on inductive coupling, Haran says.
Purposes on Ships Are Additionally Doable
He opted to not make the stators superconducting, as a result of in a typical configuration the stator is energized by an alternating-current (AC) waveform. Superconductors are solely utterly lossless for direct present. So the applying of AC to superconducting coils within the stator would lead to energy losses that may require one other cooling system to take away warmth from the stator.
Haran figures it’s not obligatory. With superconductors simply within the rotor coils, the motor will obtain efficiencies within the vary of 98 to 99.5 p.c, which is about 4 or 5 proportion factors larger than what’s realistically attainable with a permanent-magnet synchronous motor. Haran additionally insists that the superconducting design would attain this excessive effectivity with none discount in energy density, a mixture that’s laborious to realize in a standard motor.
4 or 5 proportion factors won’t look like quite a bit, however it will matter in typical aviation functions, Pilon says, particularly when coupled with larger energy density. On its web site, Hinetics claims that its motor has a steady particular energy of 10 kilowatts per kilogram, which might put the machine among the many most power-dense models obtainable, on a continuous-power foundation. Based on Haran, the following era of the superconducting motor will obtain 40 kW/kg, which might be far larger than something commercially obtainable.
Though aviation is the preliminary goal, Haran sees potential functions in ship propulsion, the place the motor’s excessive volumetric energy density could be a draw. “What’s actually thrilling is that we’re seeing a transformational new know-how grow to be sensible,” he says. “When you get to megawatts and low velocity, anyplace you want excessive torque, this could possibly be very fascinating.”
