First-Ever Supercritical CO2 Circuit Breaker Debuts

Researchers this month will start testing a high-voltage circuit breaker that may quench an arc and clear a fault with supercritical carbon dioxide fluid. The primary-of-its-kind machine may substitute typical high-voltage breakers, which use the potent greenhouse fuel sulfur hexafluoride, or SF_6. Such gear is scattered broadly all through energy grids as a approach to cease the move {of electrical} present in an emergency.

“SF₆ is a unbelievable insulator, but it surely’s very unhealthy for the setting—in all probability the worst greenhouse fuel you possibly can consider,” says Johan Enslin, a program director at U.S. Superior Analysis Initiatives Company–Vitality (ARPA-E), which funded the analysis. The greenhouse warming potential of SF₆ is almost 25,000 instances as excessive as that of carbon dioxide, he notes.

If profitable, the invention, developed by researchers on the Georgia Institute of Know-how, may have a big effect on greenhouse fuel emissions. Tons of of 1000’s of circuit breakers dot energy grids globally, and almost all the excessive voltage ones are insulated with SF₆.

A high-voltage circuit breaker interrupter, like this one made by GE Vernova, stops present by mechanically creating a spot and an arc, after which blasting high-pressure fuel by the hole. This halts the present by absorbing free electrons and quenching the arc because the dielectric energy of the fuel is elevated.GE Vernova

On prime of that, SF₆ byproducts are poisonous to people. After the fuel quenches an arc, it will possibly decompose into substances that may irritate the respiratory system. Individuals who work on SF₆-insulated gear need to put on full respirators and protecting clothes. The European Union and California are phasing out the usage of SF₆ and different fluorinated gases (F-gases) in electrical gear, and a number of other different regulators are following swimsuit.

In response, researchers globally are racing to develop alternate options. During the last 5 years, ARPA-E has funded 15 totally different early-stage circuit breaker tasks. And GE Vernova has developed merchandise for the European market that use a fuel combination that features an F-gas, however at a fraction of the focus of typical SF₆ breakers.

Reinventing Circuit Breakers With Supercritical CO₂

The job of a grid-scale circuit breaker is to interrupt the move {of electrical} present when one thing goes mistaken, equivalent to a fault attributable to a lightning strike. These units are positioned all through substations, energy era crops, transmission and distribution networks, and industrial amenities the place gear operates in tens to a whole lot of kilovolts.

In contrast to dwelling circuit breakers, which might isolate a fault with a small air hole, grid-scale breakers want one thing extra substantial. Most high-voltage breakers depend on a mechanical interrupter housed in an enclosure containing SF₆, which is a non-conductive insulating fuel. When a fault happens, the machine breaks the circuit by mechanically creating a spot and an arc, after which blasts the high-pressure fuel by the hole, absorbing free electrons and quenching the arc because the dielectric energy of the fuel is elevated.

In Georgia Tech’s design, supercritical carbon dioxide quenches the arc. The fluid is created by placing CO₂ underneath very excessive stress and temperature, turning it right into a substance that’s someplace between a fuel and a liquid. As a result of supercritical CO₂ is kind of dense, it will possibly quench an arc and keep away from reignition of a brand new arc by decreasing the momentum of electrons—or at the least that’s the idea.

Led by Lukas Graber, head of Georgia Tech’s plasma and dielectrics lab, the analysis group will run its 72-kV prototype AC breaker by an artificial take a look at circuit on the College of Wisconsin-Milwaukee starting in late April. They group can be constructing a 245-kV model.

Using supercritical CO₂ isn’t new, however designing a circuit breaker round it’s. The problem was to construct the breaker with elements that may stand up to the excessive stress wanted to maintain supercritical CO₂, says Graber.

The workforce turned to the petroleum business to search out the components, and located all however one: the bushing. This significant part serves as a feed-through to hold present by gear enclosures. However a bushing that may stand up to 120 atmospheres of stress didn’t exist. So Georgia Tech made its personal utilizing mineral-filled epoxy resins, copper conductors, metal pipes, and clean flanges.

“They’d to return to the basics of the bushing design to make the entire breaker work,” says Enslin. “That’s the place they’re making the most important contribution, in my eyes.” The compact design of Georgia Tech’s breaker will even enable it to slot in tighter areas with out sacrificing energy density, he says.

Changing a substation’s current circuit breakers with this design would require some changes, together with the addition of a warmth pump within the neighborhood for thermal administration of the breaker.

If the exams on the artificial circuit go effectively, Graber plans to run the breaker by a battery of real-world simulations at KEMA Laboratories‘ Chalfont, Penn. location—a gold commonplace certification facility.

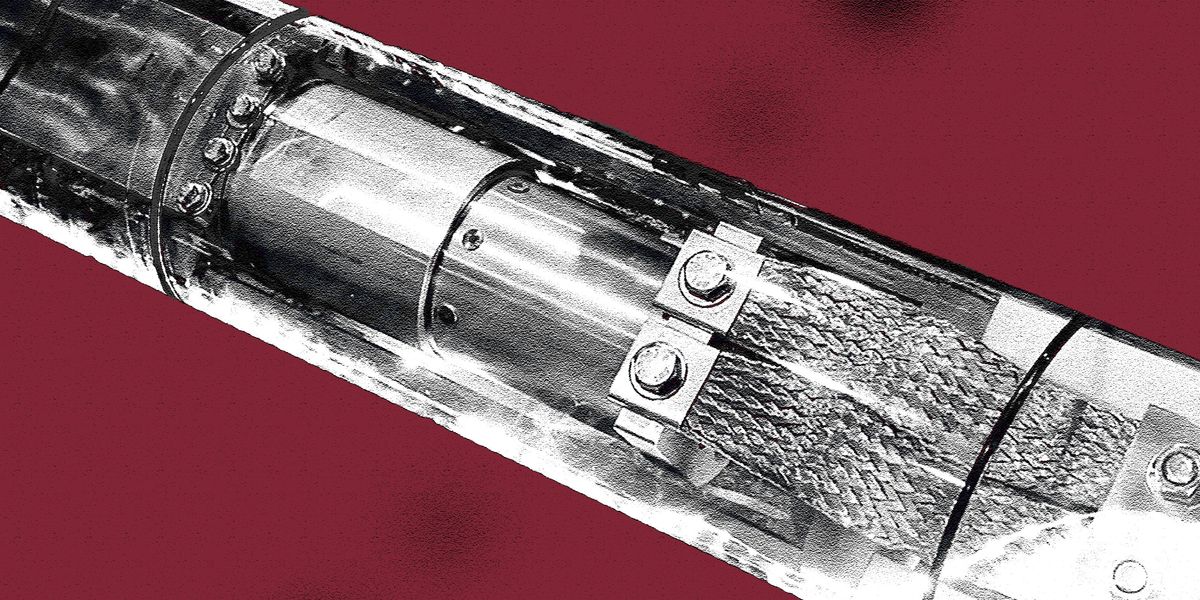

The Georgia Tech workforce constructed its circuit breaker with components that may stand up to the very excessive pressures of supercritical CO2.Alfonso Jose Cruz

GE Vernova Markets SF6-alternative Circuit Breaker

If Georgia Tech’s circuit breaker makes it to the market, it should compete with GE Vernova, which had a 20-year head begin on creating SF₆-free circuit breakers. In 2018, the corporate put in its first SF₆-free gas-insulated substation in Europe, which included a 145 kV-class AC circuit breaker that’s insulated with a fuel combination it calls g³. It’s composed of CO₂, oxygen and a small quantity of C₄F₇N, or heptafluoroisobutyronitrile.

This fluorinated greenhouse fuel isn’t good for the setting both. Nevertheless it includes lower than 5 % of the fuel combination, so it lowers the greenhouse warming potential by as much as 99 % in contrast with SF₆. That makes the warming potential nonetheless far higher than CO₂ and methane, but it surely’s a begin.

“One of many causes we’re utilizing this expertise is as a result of we will make an SF₆-free circuit breaker that may truly bolt onto the precise basis of our equal SF₆ breaker,” says Todd Irwin, a high-voltage circuit breaker senior product specialist at GE Vernova. It’s a drop-in substitute that may “slide proper right into a substation,” he says. Employees should nonetheless put on full protecting gear after they keep or repair the machine like they do for SF₆ gear, Irwin says. The corporate additionally makes a explicit kind of breaker referred to as a dwell tank circuit breakerwith out the fluorinated part, he says.

All of those approaches, together with Georgia Tech’s supercritical CO_2, depend upon mechanical motion to open and shut the circuit. This takes up treasured time within the occasion of a fault. That’s impressed many researchers to show to semiconductors, which might do the switching rather a lot sooner, and don’t want a fuel to show off the present.

“With mechanical, it will possibly take as much as 4 or 5 cycles to clear the fault and that’s a lot power that you need to take up,” says Enslin at ARPA-E. A semiconductor can doubtlessly do it in a millisecond or much less, he says. However business growth of those strong state circuit breakers continues to be in early phases, and is concentrated on medium voltages. “It can take a while to get them to the required excessive voltages,” Enslin says.

The work could also be area of interest, however the affect may very well be excessive. About 1 % of SF₆ leaks from electrical gear. In 2018, that translated to 9,040 tons (8,200 tonnes) of SF₆ emitted globally, accounting for about 1 % of the international warming worth that yr.
