Industrial aviation is the connective tissue of the fashionable world. Simply earlier than the worldwide pandemic, on a median day 12 million folks flew on some 100,000 business flights, in accordance with the
Worldwide Civil Aviation Group (ICAO). The numbers have now come roaring again: Business revenues are anticipated to achieve US $803 billion in 2023, 9.7 p.c greater than in 2022 and practically as much as the prepandemic peak, in 2019.
With elevated air mobility comes extra affect on the planet. Air visitors contributes round 2 p.c of worldwide carbon emissions. It additionally produces contrails, that are being studied for his or her affect on local weather change. It is dependent upon nonrenewable fossil fuels, and its noise afflicts communities close to airports or beneath a flight path.
Aviation regulators are uniting to handle these considerations. In October 2022, the ICAO adopted the objective of net-zero carbon emissions from business flights by 20502. In america, an
Aviation Local weather Motion Plan had already emerged with primarily the identical goal3.The problem is how one can scale back emissions whereas enabling the enlargement in air journey to assist financial progress and the private and social advantages of journey. Assembly such a problem would require basic modifications to the airplane and the way it’s operated.
Firms small and enormous, together with the world’s main producers of airliners and enormous jet engines—
Airbus, Boeing, CFM Worldwide, Embraer, GE Aerospace, RTX’s Pratt & Whitney, Rolls-Royce, and Safran Plane Engines, amongst them—have revealed plans for decreasing air-travel emissions. Frequent ways embrace introducing sustainable gasoline, reminiscent of gasoline derived from biomass, which may minimize life-cycle carbon emissions by absorbing carbon emissions throughout manufacturing. Different analysis thrusts embrace ones primarily based on powering planes with ammonia, hydrogen, or electrical energy.
In a significant effort in america, NASA and trade companions are advancing flight demonstrators to develop electrically powered propulsion techniques. On this joint effort, GE Aerospace and Boeing’s
Aurora Flight Sciences are working collectively to advance a hybrid-electric propulsion idea able to powering a 150-to-180-seat, single-aisle airplane. The challenge, referred to as Electrified Powertrain Flight Demonstration (EPFD), has been underway since 2021 and has as a significant objective the modification of a Saab 340 plane to a hybrid propulsion system. Two of GE’s CT7 engines will probably be mixed with electrical propulsion items to show a megawatt-class parallel hybrid electrical system.
One other NASA marketing campaign below EPFD with
magniX and its companions AeroTEC and Air Tindi will show a airplane idea powered by two Pratt & Whitney PT6A engines and two magniX magni650 electrical propulsion items. This challenge is concentrating on the shorter distance, 19-to-50-seat market.
Collectively, the EPFD initiative joins a collection of flight demonstrations which might be deliberate worldwide. We’re within the early levels of a key transition: Electrification might be the primary basic change in airplane propulsion techniques for the reason that introduction of the jet engine.
Why Hybrid Electrical?
The work comes because the business aviation trade reaches a crossroads. Till now, airways might rely on substantial effectivity enhancements from one airplane era to the subsequent. A 2022 research by McKinsey & Co. famous that traditionally, when airways upgraded to a brand new era of airplanes, they might rely on will increase in gasoline effectivity between 15 and 20 p.c.
Nonetheless, the jet engine has been evolving for over 80 years and people share enhancements have been getting harder. The propulsive and aerodynamic efficiencies now being achieved are troublesome to beat for airplanes that carry giant numbers of individuals as much as 3,500 nautical miles (6,500 kilometers).
Take into account the fashionable turbofan jet engine. Its gasoline shops about 43 megajoules of power per kilogram, and a current-model engine can convert that saved power into thrust with an effectivity of round 40 p.c. Hydrogen comprises much more power per unit of mass however far much less per unit of quantity. That downside, along with challenges associated to the manufacturing, availability, and storage of hydrogen, will take a few years to beat.
Fortuitously, one other technological revolution is nicely underway, within the automotive trade, which is being remodeled by advances in energy electronics, electrical motors, and power storage. Superior semiconductors, motors, and batteries are enabling power conversion efficiencies above 90 p.c and constantly enhancing the ratio of energy to weight. These similar advances are providing engaging new choices for airplane designers.
Problems of Electrifying Flight
Electrification, nevertheless, faces distinctive and in lots of circumstances higher challenges in an plane than in a automobile, notably in areas associated to reliability and weight.
Thus, to allow these architectures for bigger planes, an excessive amount of work is now centered on enhancing or decreasing the burden of the electrical motor/turbines, the facility electronics, the fault-management gadgets, and the facility transmission system. Certainly, NASA is coordinating efforts to develop and deploy new kinds of electrical motor-generators, new structural supplies, and energy converters that make the most of rising wide-bandgap semiconductors and optimized circuit designs.
In flight, security implications are elevated. Within the sky, there’s no choice to “pull over.” If a battery catches hearth these on board can’t exit the car.
Weight is an even bigger downside, too, as a result of a lot of an airplane’s power is expended merely to get within the air and to remain there. Designers decrease gasoline consumption and general power utilization by optimizing how the propulsion system interacts with the airplane’s aerodynamics.
One of the vital well-liked configurations for proposed hybrid-electric business jets is the parallel-hybrid system, by which two parallel energy sources, usually electrical energy and a gasoline turbine, are linked mechanically to drive a propulsor, reminiscent of a propeller. For instance, each a gas-powered engine and an electrical motor can be utilized to spin the identical drive shaft, both individually or collectively. For takeoff, for instance, each propulsion sources could be used, whereas only one could be used for cruising at altitude. Within the aviation trade, many different architectures are additionally being studied, together with all-electric small planes and absolutely turboelectric twin-aisle passenger jets, whose fuel-burning engines are used as electrical turbines to energy electrically pushed followers.
The EPFD challenge is capitalizing on developments which might be greater than a decade within the making. These embrace GE Aerospace’s hybrid-electric propulsion system, comprising superior motor/turbines that match right into a nacelle subsequent to a CT7 turboprop engine, a battery, conversion electronics to offer electrical energy, and controls and administration techniques wanted to function within the hybrid mode.
NASA and GE Aerospace achieved a significant milestone in 2022, demonstrating a megawatt-class and multi-kilovolt hybrid-electric propulsion system in situations that simulated people who could be encountered by a single-aisle passenger airplane at altitudes as much as 14,000 meters (45,000 ft).
NASA’s Electrical Plane Testbed is a hub of the company’s analysis and growth in sustainable aviation. Situated at NASA’s Neil Armstrong Take a look at Facility in Sandusky, Ohio, the laboratory is getting used to check megawatt-scale electrified energy trains and motors that will probably be built-in right into a hybrid, turboelectric plane demonstrator for take a look at flights round 2025.NASA
This altitude integration take a look at started in June 2021 at
NASA’s Electrical Plane Testbed in Sandusky, Ohio. For this take a look at collection, engineers at GE Aerospace assembled two units of a hybrid-electric system, representing the right- and left-engine sides of an airplane, and simulated {the electrical} hundreds required to assist optimize the engines to propel and energy an plane.
The take a look at demonstrated the totally different modes of operation and the pliability of hybrid-electric propulsion techniques normally. Take into account a airplane with two turbine engines, one below every wing, and an electrical motor-generator linked to every engine’s shaft and in addition electrically linked to a battery system. All sides of the airplane has a conversion system that takes DC battery energy and converts it to the AC energy required to drive the motor that spins the turbine. It additionally converts AC again to DC, to be able to retailer electrical power within the battery.
This was the essential configuration examined. NASA techniques had been used to both drive or be pushed by the GE Aerospace motor-generators to offer sensible hundreds, taking the place of the airplane’s propellers and turbine engines. DC energy provides had been additionally used to simulate the batteries. As soon as all of the elements had been linked and working, the take a look at took the electrical components via all the modes of operation that an electrified airplane of the longer term would possibly see throughout a typical flight—notably takeoff, cruise, and touchdown.
Considerably, this was all completed below simulated-altitude situations. The techniques acted collectively safely, free {of electrical} hazard and electromagnetic interference.
Excessive Voltage at Altitude a Vital Barrier
Making all of those techniques work collectively at excessive voltage and energy and at low stress was a considerable achievement. One of many largest challenges encountered throughout these checks was safely implementing greater voltages on the low pressures airplanes encounter after they fly. Voltages within the vary of 270 volts are routinely utilized in airliners, however that’s far too low for hybrid-electric propulsion. These airplanes will want two or extra electrical motors, every rated at 1 megawatt or extra. To adequately energy these motors would require on the order of 30 meters of heavy energy cabling and lengthy lengths of wound wire within the electrical machines.
Preserving these cable weights tolerable causes engineers to hunt greater voltages. That is pushed by probably the most basic {of electrical} formulation: Ohm’s legislation. To energy a megawatt-class motor at 100 V requires 10 instances as a lot present because it does to energy such a motor at 1,000 V. So if that motor is put in on an airplane, it usually must be powered by one thing nearer to 1,000 V. Right here’s why: The quantity of present {that a} conductor can carry is proportional to its cross-sectional space, however the weight of a wire goes up linearly with cross-sectional space. To maintain the burden of the conductors down, it’s obligatory to reduce cross-sectional space. That necessity, in flip, limits the quantity of present the wire can carry. And as Ohm’s Regulation signifies, the one technique to restrict present is by elevating the voltage.
NASAHowever, using excessive voltages in airplanes additionally runs up in opposition to one other electrical components: Paschen’s Regulation. This legislation states, in essence, that {the electrical} breakdown voltage of a spot between two conductors is set by the gap between the conductors—and in addition by the stress of the gasoline within the area between them. Decrease stress means a decrease breakdown threshold. This can be a specific problem for {the electrical} techniques used aboard airplanes: the stress at 35,000 ft (11,000 meters), a typical cruising altitude, is round 0.28 atmospheres—or lower than a 3rd of what it’s at sea degree. This implies a
issue of three discount, roughly, in breakdown threshold.
Due to the conflicting imperatives of preserving weights low and avoiding the protection hazards brought on by voltage breakdown, leaders in electrification are placing a number of assets towards “breaking the 270-volt barrier.” NASA know-how initiatives are specializing in fault administration, security, and reliability on a number of fronts. Researchers are on the lookout for materials options that can reliably defend the hole between conductors with out including weight. This safety is achieved via improved insulation, and even multifunctional insulators–layered materials techniques that may concurrently serve a number of functions. These embrace defending from ionization of the air round conductors (the corona impact), offering a moisture barrier, shielding from electromagnetic interference, selling thermal conductivity, and offering mechanical power and sturdiness.
A number of ongoing efforts are solid-state circuit interrupters which might be one-tenth the burden of their floor counterparts and but can clear a DC fault 10 instances as quick. Researchers are additionally growing circuits and gadgets designed to cut back noise, interference, and points associated to speedy modifications in line voltages and currents which might be frequent to electrical energy trains.
Electrified Powertrain Flight Demonstration (EPFD) Venture
The subsequent steps for growing a business hybrid-electric airplane are persevering with via NASA’s EPFD challenge. The groups purpose to finish a minimum of two demonstrations and introduce electrical techniques to the business fleet within the close to future.
GE Aerospace engineers are actually taking the outcomes of the altitude-integration take a look at carried out in 2022, in addition to data from different inside GE Aerospace applications, and utilizing them to construct a propulsion system for a piloted plane.

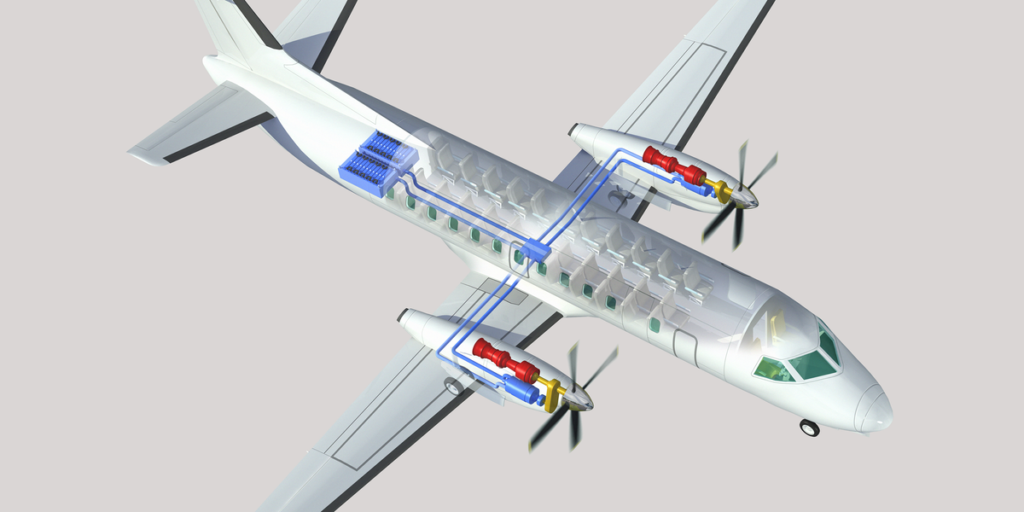

That’s the place Aurora Flight Sciences is available in. This Boeing subsidiary is integrating the GE Aerospace hybrid-electric system right into a Saab 340 airplane, a twin-engine turboprop that’s designed to hold 36 passengers. This integration work consists of modifying the airplane for the brand new propulsion system and manufacturing a nacelle to suit the added motor-generator. Additionally they have to design an interface to regulate the propulsion system from the flight deck and to verify all the pieces works collectively safely. If all goes nicely, the workforce plans to test-fly the hybrid-propulsion Saab 340 inside about six years.
Demonstrating this know-how in flight will permit the GE Aerospace and Boeing groups to handle points associated to transmitting electrical energy at excessive voltage via an airplane at altitude, learning electromagnetic interference with different airplane techniques, system security, fault administration and safety on the airplane degree, mass and heart of gravity administration, and thermal administration.
Engine-to-Engine Energy Switch
In parallel with addressing design challenges for hybrid-electric propulsion, NASA, GE Aerospace, and Boeing are additionally engaged on methods to function and preserve the complete system.
Flight-testing the hybrid-electric energy practice built-in right into a business plane at operational altitudes will present the workforce with sensible alternatives to develop gear and procedures for future business operation. This work consists of cockpit shows and floor upkeep.
Throughout testing, pilots and floor personnel could have new information to deal with, such because the battery state and situation. Management engineers are growing flight-deck management and suggestions software program appropriate for hybrid propulsion. There are additionally airplane logistics which might be made extra advanced via hybridization, such because the routing and upkeep of lengthy lengths of huge, high-power cable. One other problem is coping with a lot greater ranges of electromagnetic interference (EMI) than something noticed in a traditional plane. And, whereas making ready the modified airplane for flight, the groups are understanding such particulars as which ground-support gear is required and what different processes are wanted to guarantee security for brand spanking new electrical techniques on the bottom and through flight.
All of this information will assist to outline how the aviation world can make the most of electrification and put together for potential business entry within the 2030s.
To cut back threat, the workforce is utilizing an incremental method for integration and flight-testing. First, the Saab 340 will probably be flown with out modification to determine baseline testing information, permitting this system to measure modifications to airplane efficiency and specs as soon as modifications are launched. Subsequent, one of many nacelles will probably be modified to incorporate the hybrid-electric elements. This may permit the workforce to judge airplane efficiency and dealing with traits over a spread of related weights, altitudes, and airspeeds whereas utilizing solely turbine-engine energy. Electrical elements will then be phased in methodically: The primary flight could have a hybrid-electric propulsion system on one aspect of the airplane and a traditional engine on the opposite. Finally, the airplane will probably be modified to function with hybrid-electric propulsion techniques on each side of the airplane.
This remaining configuration will probably be able to bidirectional energy switch. This can be a distinctive profit for hybrid-electric energy trains, the place electrical energy could be generated on one engine and transferred to the opposite engine via energy cables and the airplane’s management techniques. It’s an instance of the pliability electrification can present, giving designers highly effective choices for optimizing gasoline burn and rising security.
The Way forward for “Extra-Electrical” Flight
As a result of a totally electrical, giant business airplane is at present restricted by the efficiency of its battery, the EPFD program is specializing in techniques that use electrical energy to switch solely a portion of the airplane’s complete propulsive energy. Nonetheless, batteries and different constructing blocks for electrified propulsion are nonetheless getting higher, and researchers see a future with greater ranges of electrical energy—an order of magnitude or extra. That will take a bigger minimize out of air-traffic emissions and carbon utilization.
For now, EPFD flight demonstrations will give NASA and trade groups an important alternative to make the most of progress so far. They are going to be a giant step towards making a viable path for certifying electrified propulsion on a megawatt-class scale. A staggering array of designs for future electrified propulsion preparations have been revealed so far, and the work completed on the demonstrator is supposed to pave the best way for a lot of of them.
For the aviation trade to achieve its bold objective of net-zero carbon emissions by 2050, each revolutionary new applied sciences and new power sources are wanted. There isn’t any one resolution to achieve internet zero, however the flexibility and compatibility of hybrid-electric applied sciences imply they’ll play an necessary position. Hybrid electrical techniques are additionally appropriate with different jet fuels, reminiscent of sustainable aviation gasoline and even hydrogen.
The mixed efforts and dedication of three giants within the American aviation trade to advance hybrid-electric airplanes—NASA, GE Aerospace, and Boeing—assures that the way forward for flight will probably be more and more electrical.
Editor’s be aware: The authors want to thank Gaudy M. Bezos-O’Connor, EPFD challenge supervisor at NASA, for his insights and help within the preparation of this text.
