This week on the IEEE Digital Parts and Packaging Know-how Convention, Intel unveiled that it’s creating new chip packaging know-how that can enable for greater processors for AI.
With Moore’s Legislation slowing down, makers of superior GPUs and different information heart chips are having so as to add extra silicon space to their merchandise to maintain up with the relentless rise of AI’s computing wants. However the most measurement of a single silicon chip is fastened at round 800 sq. millimeters (with one exception), so that they’ve needed to flip to superior packaging applied sciences that combine a number of items of silicon in a manner that lets them act like a single chip.
Three of the improvements Intel unveiled at ECTC have been aimed toward tackling limitations in simply how a lot silicon you may squeeze right into a single package deal and the way huge that package deal will be. They embody enhancements to the know-how Intel makes use of to hyperlink adjoining silicon dies collectively, a extra correct methodology for bonding silicon to the package deal substrate, and system to increase the scale of a essential a part of the package deal that take away warmth. Collectively, the applied sciences allow the combination of greater than 10,000 sq. millimeters of silicon inside a package deal that may be greater than 21,000 mm2—an enormous space concerning the measurement of 4 and a half bank cards.
EMIB will get a 3D improve
One of many limitations on how a lot silicon can slot in a single package deal has to do with connecting numerous silicon dies at their edges. Utilizing an natural polymer package deal substrate to interconnect the silicon dies is essentially the most inexpensive choice, however a silicon substrate lets you make extra dense connections at these edges.
Intel’s answer, launched greater than 5 years in the past, is to embed a small sliver of silicon within the natural package deal beneath the adjoining edges of the silicon dies. That sliver of silicon, referred to as EMIB, is etched with wonderful interconnects that enhance the density of connections past what the natural substrate can deal with.

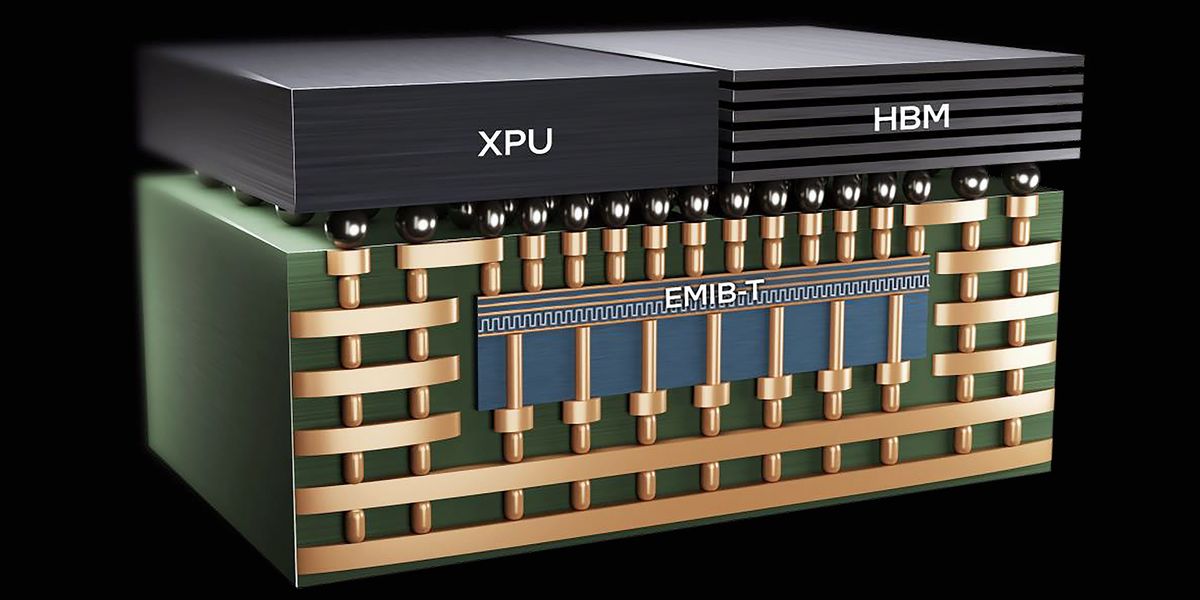

At ECTC, Intel unveiled the newest twist on the EMIB know-how, referred to as EMIB-T. Along with the same old wonderful horizontal interconnects, EMIB-T supplies comparatively thick vertical copper connections referred to as through-silicon vias, or TSVs. The TSVs enable energy from the circuit-board beneath to instantly connect with the chips above as a substitute of getting to route across the EMIB, lowering energy misplaced by an extended journey. Moreover, EMIB-T comprises a copper grid that acts as a floor aircraft to cut back noise within the energy delivered attributable to course of cores and different circuits instantly ramping up their workloads.
“It sounds easy, however this can be a know-how that brings a variety of functionality to us,” says Rahul Manepalli, vp of substrate packaging know-how at Intel. With it and the opposite applied sciences Intel described, a buyer may join silicon equal to greater than 12 full measurement silicon dies—10,000 sq. millimeters of silicon—in a single package deal utilizing 38 or extra EMIB-T bridges.
Thermal management
One other know-how Intel reported at ECTC that helps enhance the scale of packages is low-thermal-gradient thermal compression bonding. It’s a variant of the know-how used right this moment to connect silicon dies to natural substrates. Micrometer-scale bumps of solder are positioned on the substrate the place they’ll connect with a silicon die. The die is then heated and pressed onto the microbumps, melting them and connecting the package deal’s interconnects to the silicon’s.
As a result of the silicon and the substrate increase at completely different charges when heated, engineers need to restrict the inter-bump distance, or pitch. Moreover, the growth distinction makes it tough to reliably make very giant substrates filled with a number of silicon dies, which is the course AI processors must go.
The brand new Intel tech makes the thermal growth mismatch extra predictable and manageable, says Manepalli. The result’s that very-large substrates will be populated with dies. Alternatively, the identical know-how can be utilized to extend the density of connections to EMIB all the way down to about one each 25 micrometers.
A flatter warmth spreader
These greater silicon assemblages will generate much more warmth than right this moment’s techniques. So it’s essential that the warmth’s pathway out of the silicon isn’t obstructed. An built-in piece of steel referred to as a warmth spreader is vital to that, however making one sufficiently big for these giant packages is tough. The package deal substrate can warp and the steel warmth spreader itself may not keep completely flat; so it may not contact the tops of the recent dies it’s speculated to be sucking the warmth from. Intel’s answer was to assemble the built-in warmth spreader in components as a substitute of as one piece. This allowed it so as to add additional stiffening elements amongst different issues to maintain every little thing in flat and in place.
“Retaining it flat at larger temperatures is an enormous profit for reliability and yield,” says Manepalli.
Intel says the applied sciences are nonetheless within the in R&D stage and wouldn’t touch upon when these applied sciences would debut commercially. Nonetheless, they’ll doubtless need to arrive within the subsequent few years for the Intel Foundry to compete with TSMC’s deliberate packaging growth.
