Within the mid-18th century, Benjamin Franklin helped elucidate the character of lightning and endorsed the protecting worth of lightning rods. And but, 100 years later, a lot of the general public remained unconvinced. Consequently, lightning continued to strike church steeples, ship masts, and different tall buildings, inflicting extreme harm.
Annoyed scientists turned to visible aids to assist make their case for the lightning rod. The exploding thunder home is one instance. When a small quantity of gunpowder was deposited contained in the dollhouse-size construction and a cost was utilized, the home would both explode or not, relying on whether or not it was ungrounded or grounded. [For more on thunder houses, see “Tiny Exploding Houses Promoted 18th-Century Lightning Rods,.” IEEE Spectrum, 1 April 2023.]
One other visible help for selling lightning rods was an ingenious booklet by the British physician and electrical researcher William Snow Harris. Printed round 1861, Three Experimental Illustrations of a Normal Legislation of Electrical Discharge made the case for Harris’s invention: a lightning rod for tall-masted picket ships. The rod was hooked up to the mainmast, ran by way of the hull, and linked to copper sheeting on the underside of the ship, thus dissipating any electrical energy from a lightning strike into the ocean. It was an awesome thought, and it appeared to work. So why did the British Navy refuse to undertake it? I’ll get to that in a bit.
How one can Illustrate the Ideas of Lightning
The “experimental illustrations” in Harris’s 16-page pamphlet had been supposed to be interactive, every one highlighting a selected precept of conductivity. The illustrations had been plated with gold leaf to imitate the conducting path of lightning. When the reader utilized a cost to 1 finish, the present charred a black course alongside the web page. Within the illustration at high, somebody has clearly executed this on the best hand facet.
Within the first experimental illustration in Harris’s e book, the gold leaf is scattered haphazardly throughout the web page. Linda Corridor Library of Science, Engineering & Know-how
The gold leaf in Harris’s first experimental illustration is positioned haphazardly to point out how electrical energy will comply with the trail of least resistance. If sturdy sufficient, the electrical energy will soar throughout small breaks to the closest adjoining metallic piece. Notably, items of gold that don’t lie alongside the trail stay unaffected. Harris’s lesson right here is that if there have been a strong, uninterrupted line of steel that’s sufficiently remoted from different items—say, a lightning rod on a picket ship’s mast—the present would comply with that channel whereas sparing the remainder.
The second experiment addresses an issue that was widespread within the days of tall ships: the rise and fall of the lightning rod because the jibs and rigging had been adjusted in keeping with the climate. Whereas a church steeple and its lightning rod stay fastened, a movable mast and the consistently altering rigging altered the configuration of the lightning rod. The experiment demonstrates that Harris’s design wasn’t affected by such adjustments. A cost wouldn’t dead-end and detonate midship simply because a jib had been lowered. It might nonetheless comply with the conductor that results in the perfect exit for dissipation—that’s, the ship’s backside.

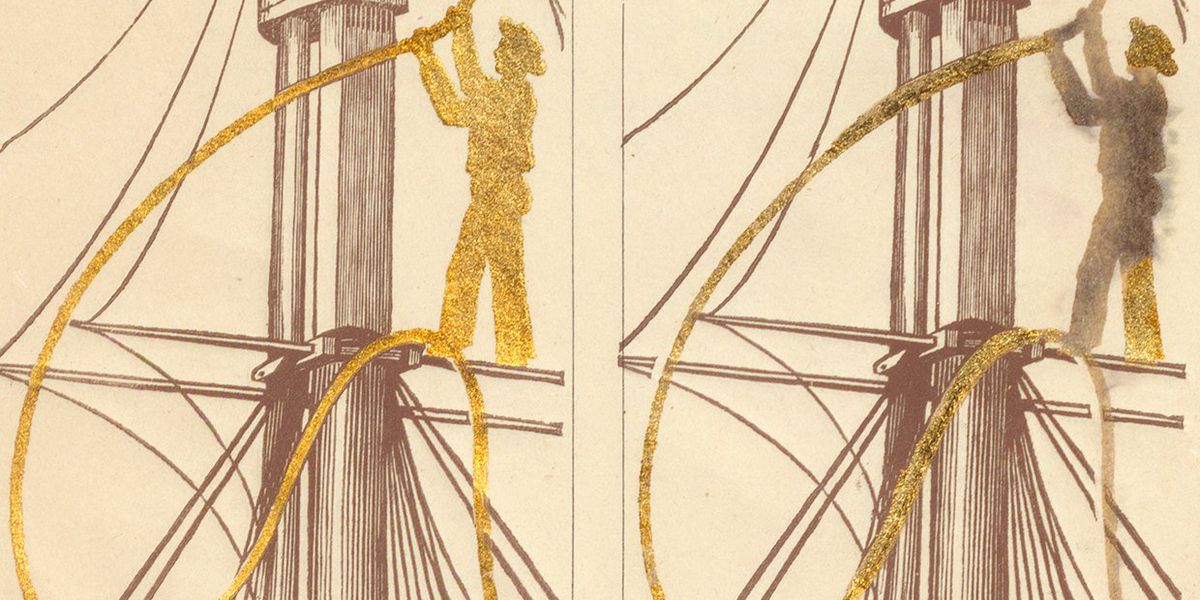

The ultimate experiment within the pamphlet, the one proven at high, takes direct purpose at the popular lightning conductor employed by the Royal Navy: a versatile cable or hyperlink of chains. The cable or chain was hooked up to the highest of the foremast after which unfurled into the ocean. However so deployed, it usually bought in the best way, and most captains opted to retailer it rolled up someplace on deck. Each time a squall was noticed on the horizon, one unfortunate sailor needed to shortly haul the chain up the mast and connect it.
The experiment illustrates what would occur if the sailor had been to by accident are available contact with two factors of a free conductive cable throughout a lightning storm. As an alternative of following the cable, the discharge would course straight by way of him. As Harris wrote within the description, the poor seaman “could be most likely destroyed.” Demise was a transparent threat for sailors on unprotected ships, simply because it was for bell ringers in unprotected church buildings.
Mr. Thunder-and-Lightning Harris
William Snow Harris revealed Three Experimental Illustrations when he was about 70, and he died six years later. The booklet was his ultimate salvo in a battle he had waged with the Royal Navy for many years.
Born within the port metropolis of Plymouth, England, in 1791, Harris studied medication in Edinburgh after which returned house, arrange a follow, and was admitted to the Royal School of Physicians. Within the 1810s, his fascination with lightning strikes and tall-masted picket ships took maintain. He started engaged on a shipborne lightning-rod system, perfecting it by 1820.
For the remainder of his profession, Harris tried to persuade the Royal Navy to undertake it. He deserted his medical follow and dove deeper into his research of electrical energy. He introduced papers on the Royal Society and wrote books on the character of thunderstorms. An 1823 e book on the results of lightning on ships additionally featured his gold-leafed experimental illustrations, together with a vivid description of a lightning strike on an unprotected ship: “The primary-top mast, from head to heel, was shivered right into a thousand splinters….” Harris enlisted assist for his system from main scientists, equivalent to Michael Faraday, Charles Wheatstone, and Humphry Davy. He ultimately earned the nickname Mr. Thunder-and-Lightning Harris for his zealotry.
Regardless of his enthusiasm and the assist of the Royal Society and different scientists, although, the navy declined to just accept Harris’s proposal.
Harris continued to press his case. A well-publicized lightning strike on the U.S. packet ship New York in 1827 helped. Three days into its transatlantic journey, lightning struck at daybreak. The “electrical fluid,” because it was then referred to as, ran down the mainmast, bursting three iron hoops and shattering the masthead and cap. It entered a storeroom and demolished the bulkheads and fittings earlier than following a lead pipe into the women’ cabin and fragmenting a big mirror. Elsewhere, it overturned a piano, break up the eating desk into items, and magnetized the ship’s chronometer in addition to many of the males’s watches.
A lightning conductor wasn’t in place throughout the strike, however the crew raised the iron chain within the aftermath. Good factor they did. At 2:00 p.m., lightning struck the unlucky New York once more. Because the American Journal of Science and Arts reported, the chain was “actually torn to items and scattered to the winds,” however it did its job and saved the ship, and no passengers had been killed.
Subsequently, the admiralty agreed to conduct a pilot take a look at of Harris’s system. Beginning in 1830, the navy fitted the conductor onto 11 vessels, ranging in dimension from a 10-gun brig to a 120-gun ship of the road. The brig occurred to be the HMS Beagle, which was about to set sail for a surveying journey of South America. After it returned 5 years later, considered one of its passengers, Charles Darwin, revealed an account that made the voyage well-known. (His 1859 e book, On the Origin of Species, was additionally based mostly on his analysis aboard the Beagle.)
In the course of the expedition, the ship continuously encountered lightning and was struck no less than twice. In August 1832, for example, whereas the ship was anchored off Monte Video, Uruguay, First Lieutenant Bartholomew Sulivandescribed a strike that he witnessed whereas on deck: “The mainmast, for the immediate, gave the impression to be a mass of fireplace, I felt sure that the lightning had handed down the conductor on that mast.”
Sulivan had beforehand been aboard the Thetis, whose foremast had been destroyed by lightning, so he was particularly attuned to the destruction storms might trigger. But on the Beagle, he wrote,“not the slightest ailing consequence was skilled.” When Captain Robert FitzRoy made his report back to the admiralty, he likewise endorsed Harris’s system: “Have been I allowed to decide on between masts so fitted and the opposite, I ought to determine in favor of these having Harris’s conductors.”
Not one of the 11 ships fitted with Harris’s system was broken by lightning. And but, the navy quickly started eradicating the demonstration conductors and putting them within the scrap heap.
Numbers Don’t Lie
To not be defeated, Harris turned to statistics, compiling a listing of 235 British naval vessels broken by lightning, from the Abercromby (26 October 1811, topmast shivered into splinters 14 ft down) to the Zebra (27 March 1838, main-topgallant and topmast shivered; fell on the deck; main-cap break up; the jib and sails on mainmast scorched). Moreover, he cataloged the deaths of almost 100 seamen and critical damage of about 250 others. Throughout one significantly dangerous interval of 5 – 6 years, Harris realized, lightning destroyed 40 ships of the road, 20 frigates, and 10 sloops, disabling about one-eighth of the British navy.
In December 1838, lightning struck and broken a serious warship, the 92-gun Rodney. Sensing a possibility to make a public case for his system, Harris bypassed the admiralty and petitioned the Home of Commons to evaluate his claims. A Naval Fee appointed to do this wound up firmly supporting Harris.
Even then, the navy didn’t completely purchase into Harris’s system. As an alternative, it allowed commanders to put in it—if they petitioned the admiralty. Given how overtly hostile the admiralty was towards Harris, I’m guessing many captains didn’t do this.
A Lightning Rod for Each British Warship
Lastly, in June 1842, the admiralty ordered using Harris’s lightning rods on all Royal Navy vessels. In accordance with Theodore Bernstein and Terry S. Reynolds, who chronicled Harris’s battle of their 1978 article “Defending the Royal Navy from Lightning: William Snow Harris and His Battle with the British Admiralty for Fastened Lightning Conductors” in IEEE Transactions on Training, the navy’s change of coronary heart wasn’t resulting from higher information or extra appeals by Harris and his backers. It largely got here right down to politics.
Bernstein and Reynolds supply three doable explanations as to why it took the admiralty greater than twenty years to undertake Harris’s demonstrably superior system. The primary was ignorance. Though the scientific group was satisfied early on by Harris, some folks nonetheless believed that conductors attracted lightning, they usually apprehensive that lightning might ignite the shops of gunpowder on board.
A second argument was monetary. Harris’s system was considerably dearer than a easy cable or chain. In a single 1831 estimate, the price of Harris’s system ranged from £102 for a 10-gun brig to £365 for a 120-gun brig, in comparison with lower than £5 for the straightforward cable. Positive, Harris’s system was efficient, however was it greater than 20 occasions as efficient? After all, the straightforward cable provided no safety in any respect if it was by no means deployed, as many captains admitted to.
However the final purpose for the navy’s resistance, argued Bernstein and Reynolds, was political. In 1830, when Harris appeared on the verge of success, the Whigs gained management of Parliament. In the middle of a number of months, a lot of Harris’s authorities supporters discovered themselves powerless or outright fired. It wasn’t till late 1841, when the Tories regained energy, that Harris’s fortunes reversed.
Bernstein and Reynolds recognized John Barrow, second secretary to the admiralty, as the important thing particular person standing in Harris’s approach. Political appointees got here and went, however Barrow held his workplace for over 40 years, from 1804 to 1845. Barrow managed the navy’s funds, and he apparently thought-about Harris a charlatan who was attempting to promote the navy an costly and ineffective expertise. He used his place to repeatedly block it. One navy supporter of Harris’s system referred to as Barrow “probably the most obstinate man dwelling.”
In Barrow’s protection, as Bernstein and Reynolds famous of their article, Harris’s system was model new, and the navy already had a cheap and considerably efficient approach to cope with lightning. Harris thus needed to show the worth of his invention, and politicians needed to be taught to belief the outcomes. That stress between scientists and politicians persists to at the present time.
Harris ultimately proved victorious. By 1850, each vessel within the Royal Navy was outfitted together with his lightning rod. However the victory was fleeting. By the beginning of the following decade, the primary British ironclad ship had appeared, and by the top of the century, all new naval ships had been product of steel. Steel ships naturally conduct lightning to the encompassing water. There was not a necessity for a lightning rod.
A part of a persevering with sequence historic artifacts that embrace the boundless potential of expertise.
An abridged model of this text seems within the March 2025 print difficulty as “The Path of Most Resistance.”
